7.6.3 基於TCP協議的Socket通信(2)

編輯:Android技術基礎

本節引言:

上節中我們給大家接觸了Socket的一些基本概念以及使用方法,然後寫了一個小豬簡易聊天室的 Demo,相信大家對Socket有了初步的掌握,本節我們來學習下使用Socket來實現大文件的斷點續傳! 這裡講解的是別人寫好的一個Socket上傳大文件的例子,不要求我們自己可以寫出來,需要的時候會用 就好!


1.運行效果圖:

1.先把我們編寫好的Socket服務端運行起來:

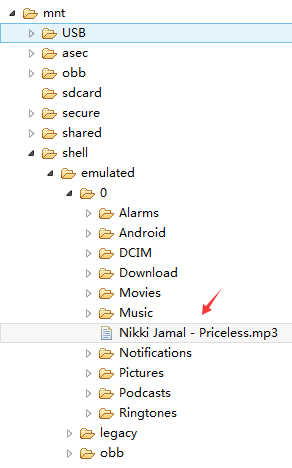

2.將一個音頻文件放到SD卡根目錄下:

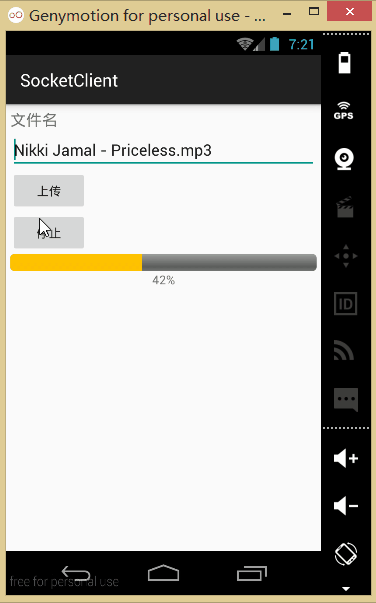

3.運行我們的客戶端:

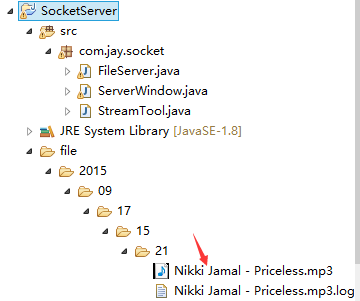

4.上傳成功後可以看到我們的服務端的項目下生成一個file的文件夾,我們可以在這裡找到上傳的文件: .log那個是我們的日志文件

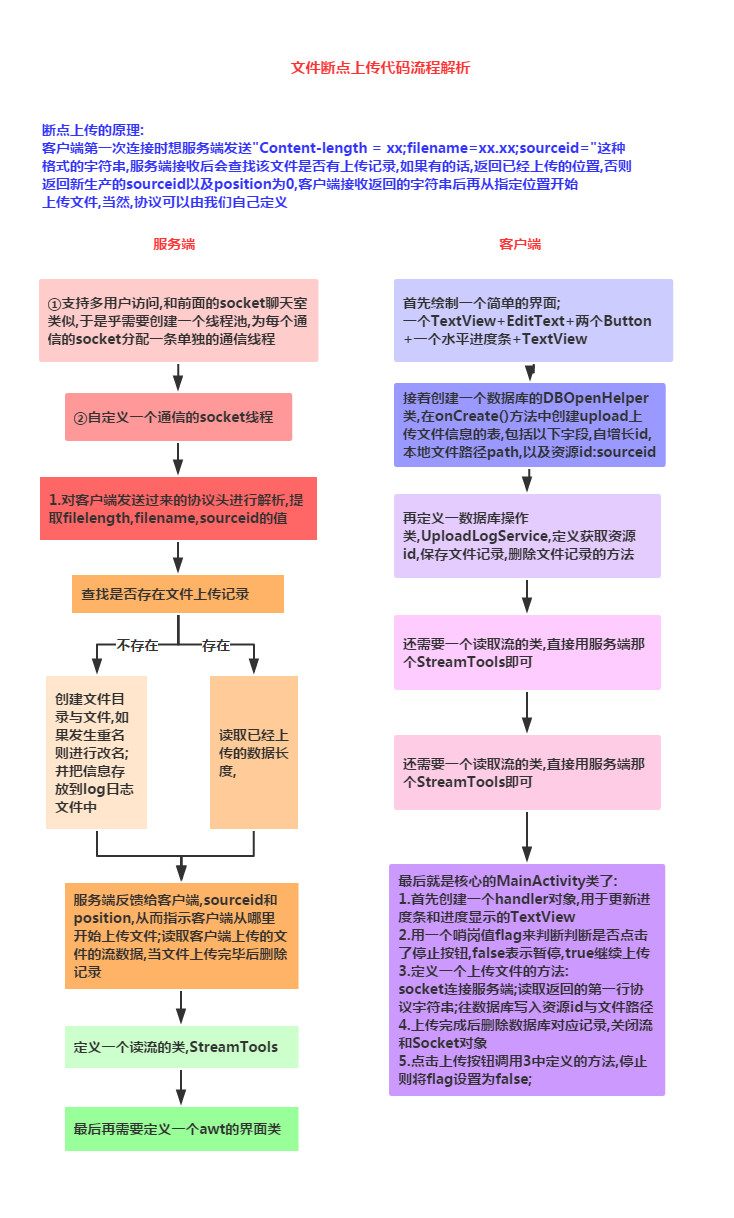

2.實現流程圖:


3.代碼示例:

先編寫一個服務端和客戶端都會用到的流解析類:

StreamTool.java

public class StreamTool {

	public static void save(File file, byte[] data) throws Exception {
		FileOutputStream outStream = new FileOutputStream(file);
		outStream.write(data);
		outStream.close();
	}

	public static String readLine(PushbackInputStream in) throws IOException {
		char buf[] = new char[128];
		int room = buf.length;
		int offset = 0;
		int c;
		loop:       while (true) {
			switch (c = in.read()) {
				case -1:
				case '\n':
					break loop;
				case '\r':
					int c2 = in.read();
					if ((c2 != '\n') && (c2 != -1)) in.unread(c2);
					break loop;
				default:
					if (--room < 0) {
						char[] lineBuffer = buf;
						buf = new char[offset + 128];
						room = buf.length - offset - 1;
						System.arraycopy(lineBuffer, 0, buf, 0, offset);

					}
					buf[offset++] = (char) c;
					break;
			}
		}
		if ((c == -1) && (offset == 0)) return null;
		return String.copyValueOf(buf, 0, offset);
	}

	/**
	 * 讀取流
	 * @param inStream
	 * @return 字節數組
	 * @throws Exception
	 */
	public static byte[] readStream(InputStream inStream) throws Exception{
		ByteArrayOutputStream outSteam = new ByteArrayOutputStream();
		byte[] buffer = new byte[1024];
		int len = -1;
		while( (len=inStream.read(buffer)) != -1){
			outSteam.write(buffer, 0, len);
		}
		outSteam.close();
		inStream.close();
		return outSteam.toByteArray();
	}
}

1)服務端的實現:

socket管理與多線程管理類:

FileServer.java

public class FileServer {

    private ExecutorService executorService;//線程池
    private int port;//監聽端口
    private boolean quit = false;//退出
    private ServerSocket server;
    private Map<Long, FileLog> datas = new HashMap<Long, FileLog>();//存放斷點數據

    public FileServer(int port){
        this.port = port;
        //創建線程池,池中具有(cpu個數*50)條線程
        executorService = Executors.newFixedThreadPool(Runtime.getRuntime().availableProcessors() * 50);
    }
    /**
     * 退出
     */
    public void quit(){
       this.quit = true;
       try {
           server.close();
       } catch (IOException e) {
       }
    }
    /**
     * 啟動服務
     * @throws Exception
     */
    public void start() throws Exception{
        server = new ServerSocket(port);
        while(!quit){
            try {
              Socket socket = server.accept();
              //為支持多用戶並發訪問,采用線程池管理每一個用戶的連接請求
              executorService.execute(new SocketTask(socket));
            } catch (Exception e) {
              //  e.printStackTrace();
            }
        }
    }

    private final class SocketTask implements Runnable{
       private Socket socket = null;
       public SocketTask(Socket socket) {
           this.socket = socket;
       }

       public void run() {
           try {
               System.out.println("accepted connection "+ socket.getInetAddress()+ ":"+ socket.getPort());
               PushbackInputStream inStream = new PushbackInputStream(socket.getInputStream());
               //得到客戶端發來的第一行協議數據:Content-Length=143253434;filename=xxx.3gp;sourceid=
               //如果用戶初次上傳文件,sourceid的值為空。
               String head = StreamTool.readLine(inStream);
               System.out.println(head);
               if(head!=null){
                   //下面從協議數據中提取各項參數值
                   String[] items = head.split(";");
                   String filelength = items[0].substring(items[0].indexOf("=")+1);
                   String filename = items[1].substring(items[1].indexOf("=")+1);
                   String sourceid = items[2].substring(items[2].indexOf("=")+1);
                   long id = System.currentTimeMillis();//生產資源id,如果需要唯一性,可以采用UUID
                   FileLog log = null;
                   if(sourceid!=null && !"".equals(sourceid)){
                       id = Long.valueOf(sourceid);
                       log = find(id);//查找上傳的文件是否存在上傳記錄
                   }
                   File file = null;
                   int position = 0;
                   if(log==null){//如果不存在上傳記錄,為文件添加跟蹤記錄
                       String path = new SimpleDateFormat("yyyy/MM/dd/HH/mm").format(new Date());
                       File dir = new File("file/"+ path);
                       if(!dir.exists()) dir.mkdirs();
                       file = new File(dir, filename);
                       if(file.exists()){//如果上傳的文件發生重名,然後進行改名
                           filename = filename.substring(0, filename.indexOf(".")-1)+ dir.listFiles().length+ filename.substring(filename.indexOf("."));
                           file = new File(dir, filename);
                       }
                       save(id, file);
                   }else{// 如果存在上傳記錄,讀取已經上傳的數據長度
                       file = new File(log.getPath());//從上傳記錄中得到文件的路徑
                       if(file.exists()){
                           File logFile = new File(file.getParentFile(), file.getName()+".log");
                           if(logFile.exists()){
                               Properties properties = new Properties();
                               properties.load(new FileInputStream(logFile));
                               position = Integer.valueOf(properties.getProperty("length"));//讀取已經上傳的數據長度
                           }
                       }
                   }

                   OutputStream outStream = socket.getOutputStream();
                   String response = "sourceid="+ id+ ";position="+ position+ "\r\n";
                   //服務器收到客戶端的請求信息後,給客戶端返回響應信息:sourceid=1274773833264;position=0
                   //sourceid由服務器端生成,唯一標識上傳的文件,position指示客戶端從文件的什麼位置開始上傳
                   outStream.write(response.getBytes());

                   RandomAccessFile fileOutStream = new RandomAccessFile(file, "rwd");
                   if(position==0) fileOutStream.setLength(Integer.valueOf(filelength));//設置文件長度
                   fileOutStream.seek(position);//指定從文件的特定位置開始寫入數據
                   byte[] buffer = new byte[1024];
                   int len = -1;
                   int length = position;
                   while( (len=inStream.read(buffer)) != -1){//從輸入流中讀取數據寫入到文件中
                       fileOutStream.write(buffer, 0, len);
                       length += len;
                       Properties properties = new Properties();
                       properties.put("length", String.valueOf(length));
                       FileOutputStream logFile = new FileOutputStream(new File(file.getParentFile(), file.getName()+".log"));
                       properties.store(logFile, null);//實時記錄已經接收的文件長度
                       logFile.close();
                   }
                   if(length==fileOutStream.length()) delete(id);
                   fileOutStream.close();
                   inStream.close();
                   outStream.close();
                   file = null;

               }
           } catch (Exception e) {
               e.printStackTrace();
           }finally{
               try {
                   if(socket!=null && !socket.isClosed()) socket.close();
               } catch (IOException e) {}
           }
       }
    }

    public FileLog find(Long sourceid){
        return datas.get(sourceid);
    }
    //保存上傳記錄
    public void save(Long id, File saveFile){
        //日後可以改成通過數據庫存放
        datas.put(id, new FileLog(id, saveFile.getAbsolutePath()));
    }
    //當文件上傳完畢,刪除記錄
    public void delete(long sourceid){
        if(datas.containsKey(sourceid)) datas.remove(sourceid);
    }

    private class FileLog{
       private Long id;
       private String path;
       public Long getId() {
           return id;
       }
       public void setId(Long id) {
           this.id = id;
       }
       public String getPath() {
           return path;
       }
       public void setPath(String path) {
           this.path = path;
       }
       public FileLog(Long id, String path) {
           this.id = id;
           this.path = path;
       }
    }

}

服務端界面類:ServerWindow.java

public class ServerWindow extends Frame {
	private FileServer s = new FileServer(12345);
	private Label label;

	public ServerWindow(String title) {
		super(title);
		label = new Label();
		add(label, BorderLayout.PAGE_START);
		label.setText("服務器已經啟動");
		this.addWindowListener(new WindowListener() {
			public void windowOpened(WindowEvent e) {
				new Thread(new Runnable() {
					public void run() {
						try {
							s.start();
						} catch (Exception e) {
							// e.printStackTrace();
						}
					}
				}).start();
			}

			public void windowIconified(WindowEvent e) {
			}

			public void windowDeiconified(WindowEvent e) {
			}

			public void windowDeactivated(WindowEvent e) {
			}

			public void windowClosing(WindowEvent e) {
				s.quit();
				System.exit(0);
			}

			public void windowClosed(WindowEvent e) {
			}

			public void windowActivated(WindowEvent e) {
			}
		});
	}

	/**
	 * @param args
	 */
	public static void main(String[] args) throws IOException {
		InetAddress address = InetAddress.getLocalHost();
		ServerWindow window = new ServerWindow("文件上傳服務端:" + address.getHostAddress());
		window.setSize(400, 300);
		window.setVisible(true);

	}

}

2)客戶端(Android端)

首先是布局文件:activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:orientation="vertical"
    android:padding="5dp">

    <TextView
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="文件名"
        android:textSize="18sp" />

    <EditText
        android:id="@+id/edit_fname"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:text="Nikki Jamal - Priceless.mp3" />

    <Button
        android:id="@+id/btn_upload"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="上傳" />

    <Button
        android:id="@+id/btn_stop"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="停止" />

    <ProgressBar
        android:id="@+id/pgbar"

        android:layout_width="fill_parent"
        android:layout_height="40px" />

    <TextView
        android:id="@+id/txt_result"
        android:layout_width="fill_parent"
        android:layout_height="wrap_content"
        android:gravity="center" />
</LinearLayout>

因為斷點續傳,我們需要保存上傳的進度,我們需要用到數據庫,這裡我們定義一個數據庫 管理類:DBOpenHelper.java:

/**
 * Created by Jay on 2015/9/17 0017.
 */
public class DBOpenHelper extends SQLiteOpenHelper {

    public DBOpenHelper(Context context) {
        super(context, "jay.db", null, 1);
    }

    @Override
    public void onCreate(SQLiteDatabase db) {
        db.execSQL("CREATE TABLE IF NOT EXISTS uploadlog (_id integer primary key autoincrement, path varchar(20), sourceid varchar(20))");
    }

    @Override
    public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {

    }
}

然後是數據庫操作類:UploadHelper.java

/**
 * Created by Jay on 2015/9/17 0017.
 */
public class UploadHelper {
    private DBOpenHelper dbOpenHelper;

    public UploadHelper(Context context) {
        dbOpenHelper = new DBOpenHelper(context);
    }

    public String getBindId(File file) {
        SQLiteDatabase db = dbOpenHelper.getReadableDatabase();
        Cursor cursor = db.rawQuery("select sourceid from uploadlog where path=?", new String[]{file.getAbsolutePath()});
        if (cursor.moveToFirst()) {
            return cursor.getString(0);
        }
        return null;
    }

    public void save(String sourceid, File file) {
        SQLiteDatabase db = dbOpenHelper.getWritableDatabase();
        db.execSQL("insert into uploadlog(path,sourceid) values(?,?)",
                new Object[]{file.getAbsolutePath(), sourceid});
    }

    public void delete(File file) {
        SQLiteDatabase db = dbOpenHelper.getWritableDatabase();
        db.execSQL("delete from uploadlog where path=?", new Object[]{file.getAbsolutePath()});
    }
}

對了,別忘了客戶端也要貼上那個流解析類哦,最後就是我們的MainActivity.java了:

public class MainActivity extends AppCompatActivity implements View.OnClickListener {

    private EditText edit_fname;
    private Button btn_upload;
    private Button btn_stop;
    private ProgressBar pgbar;
    private TextView txt_result;

    private UploadHelper upHelper;
    private boolean flag = true;


    private Handler handler = new Handler() {
        @Override
        public void handleMessage(Message msg) {
            pgbar.setProgress(msg.getData().getInt("length"));
            float num = (float) pgbar.getProgress() / (float) pgbar.getMax();
            int result = (int) (num * 100);
            txt_result.setText(result + "%");
            if (pgbar.getProgress() == pgbar.getMax()) {
                Toast.makeText(MainActivity.this, "上傳成功", Toast.LENGTH_SHORT).show();
            }
        }
    };

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        bindViews();
        upHelper = new UploadHelper(this);
    }

    private void bindViews() {
        edit_fname = (EditText) findViewById(R.id.edit_fname);
        btn_upload = (Button) findViewById(R.id.btn_upload);
        btn_stop = (Button) findViewById(R.id.btn_stop);
        pgbar = (ProgressBar) findViewById(R.id.pgbar);
        txt_result = (TextView) findViewById(R.id.txt_result);

        btn_upload.setOnClickListener(this);
        btn_stop.setOnClickListener(this);
    }

    @Override
    public void onClick(View v) {
        switch (v.getId()) {
            case R.id.btn_upload:
                String filename = edit_fname.getText().toString();
                flag = true;
                if (Environment.getExternalStorageState().equals(Environment.MEDIA_MOUNTED)) {
                    File file = new File(Environment.getExternalStorageDirectory(), filename);
                    if (file.exists()) {
                        pgbar.setMax((int) file.length());
                        uploadFile(file);
                    } else {
                        Toast.makeText(MainActivity.this, "文件並不存在~", Toast.LENGTH_SHORT).show();
                    }
                } else {
                    Toast.makeText(MainActivity.this, "SD卡不存在或者不可用", Toast.LENGTH_SHORT).show();
                }
                break;
            case R.id.btn_stop:
                flag = false;
                break;
        }
    }

    private void uploadFile(final File file) {
        new Thread(new Runnable() {
            public void run() {
                try {
                    String sourceid = upHelper.getBindId(file);
                    Socket socket = new Socket("172.16.2.54", 12345);
                    OutputStream outStream = socket.getOutputStream();
                    String head = "Content-Length=" + file.length() + ";filename=" + file.getName()
                            + ";sourceid=" + (sourceid != null ? sourceid : "") + "\r\n";
                    outStream.write(head.getBytes());

                    PushbackInputStream inStream = new PushbackInputStream(socket.getInputStream());
                    String response = StreamTool.readLine(inStream);
                    String[] items = response.split(";");
                    String responseSourceid = items[0].substring(items[0].indexOf("=") + 1);
                    String position = items[1].substring(items[1].indexOf("=") + 1);
                    if (sourceid == null) {//如果是第一次上傳文件,在數據庫中不存在該文件所綁定的資源id
                        upHelper.save(responseSourceid, file);
                    }
                    RandomAccessFile fileOutStream = new RandomAccessFile(file, "r");
                    fileOutStream.seek(Integer.valueOf(position));
                    byte[] buffer = new byte[1024];
                    int len = -1;
                    int length = Integer.valueOf(position);
                    while (flag && (len = fileOutStream.read(buffer)) != -1) {
                        outStream.write(buffer, 0, len);
                        length += len;//累加已經上傳的數據長度
                        Message msg = new Message();
                        msg.getData().putInt("length", length);
                        handler.sendMessage(msg);
                    }
                    if (length == file.length()) upHelper.delete(file);
                    fileOutStream.close();
                    outStream.close();
                    inStream.close();
                    socket.close();
                } catch (Exception e) {
                    Toast.makeText(MainActivity.this, "上傳異常~", Toast.LENGTH_SHORT).show();
                }
            }
        }).start();
    }

}

最後,還有,記得往**AndroidManifest.xml**中寫入這些權限哦!

<!-- 在SDCard中創建與刪除文件權限 -->
<uses-permission android:name="android.permission.MOUNT_UNMOUNT_FILESYSTEMS"/>
<!-- 往SDCard寫入數據權限 -->
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<!-- 訪問internet權限 -->
<uses-permission android:name="android.permission.INTERNET"/>

4.代碼下載:

Socket上傳大文件demo


5.本節小結:

本節給大家介紹了基於TCP協議的Socket的另一個實例:使用Socket完成大文件的續傳, 相信大家對Socket的了解更進一步,嗯,下一節再寫一個例子吧,兩個處於同一Wifi 下的手機相互傳遞數據的實例吧!就說這麼多,謝謝~

  1. 上一頁:
  2. 下一頁:
熱門文章
閱讀排行版
Copyright © Android教程網 All Rights Reserved
