A DB2 Performance Tuning Roadmap --DIVE INTO LOCK

在整理了DB2 LOG相關內容的基礎之上，這章整理lock的內容，相比較與log，lock的內容更多的與應用相關，涉及內容方方面面更加復雜。DBMS在本質上不同於文件系統的地方在於DBMS系統所支持的事務。 如果log的引入是為了保證持久化，那麼LOCK的引入就是保證事務串行化，解決事務的並發帶來了資源的RACE CONDITION。不同的事務場景，定義了不同的並發需求，為此定義了4種事務的隔離級別，不同的DBMS引入了不同的鎖機制來實現。DB2的串行化機制主要是通過LOCK,LATCH,CLAIM/DRAIM 來實現，具體的LOCK的相關屬性以及LOCK屬性對應用程序的影響比如OBJECT,SIZE,MODE,DURATION,PARTICIPANTS,PARAMETER LOCATIONS都進行了介紹。當引入了DBMS CLUSTER(DB2中為DATA SHARING GROUP,而ORACLE中為ORACEL RAC) 以後，為了處理不同不同MEMBER之間數據的一致性，DB2引入了PHYSICAL LOCK以及CF LOCK STRTURE 來實現全局LOCK 沖突檢測。單個SUBSYSTEM中，主要的沖突有TIMEOUT,DEADLOCK,在DATASHARING GROUP,引入了新的CONTENTION,XES CONTENTION,FALSE CONTENTION,GLOBAL LOCK CONTENTION。引入LOCK的同時不可避免的帶來了新的OVERHEAD，DB2主要通過IRLM,XES,CF等處理鎖資源的請求，除了地址空間除了鎖請求之外，由於應用本身設計不合理或是某些特定的場景帶來了很多問題，如TEMEOUT,DEADLOCK,LOCK ESCALATION等，如何有效的避免這些問題，需要系統運維人員以及開發人員共同努力。
本文的行文脈絡基於個人對DBMS LOCK的認知層次，行文的邏輯性，合理性,整理內容的知識面的廣度和深度都有待進一步的思考。
這篇博客從落筆到完成大體的框架，持持續續時間已經接近2周，應該是自己耗時最長的一篇博客，縱使如此，每一次查看，發下仍有新的東西需要自己補充，等後續會繼續補充自己的理解。

• LOCK OVERVIEW
  • WHY LOCKS ? DB2 Serialization Mechanisms
    • Data Consistency And Database Concurrency
      • Phenomena Seen When Transactions Run Concurrently
      • Lost Updates
      • DIRTY READS
      • Non-Repeatable Reads
      • Phantoms
  • LOCK PROPERTIES
    • LOCK OBJECT OWNER
    • LOCK PARTICIPANTS
    • LOCK SIZE
    • LOCK MODE
    • LOCK DURATION
    • LOCK REQUEST AND RELEASE
    • LOCK AND TRAN ISOLATION LELVEL
    • LOCKING PARAMETERS LOCATIONS
      • DDL
      • DML
      • Precompiler Locking Parameters
      • Bind Locking Parameters
      • Zparm Locking Parameters
  • CLAIM AND DRAIN
  • LATCH
  • ADVANCED TOPICS
    • L-LOCK(EXPLICIT HIERARCHICAL LOCKING )EHL
    • PHYSICAL LOCK
    • RETAINED LOCKS(UPDATE LOCKS)
      • IMPACT OF Retained LOCKS
    • LOCK SCOPE:
      • LOCAL LOCK
      • GLOBAL LOCK
      • GLOBAL LOCK COMMUNICATION
        • Page Set P-Lock Negotiation
    • CF LOCK STRUCTURE
      • MODIFIED RESOURCE LIST(MRL)
      • LOCK TABLE
      • XCF
      • XES
        • XES CONTENTION
        • FALSE CONTENTION
        • GLOBAL CONTENTION
        • DATA SHARING ACTIVITY REPORT
      • Lock Structure Shortage Actions
  • Types of locking problems
    • How do I find out I have a problem
    • Analyzing concurrency problems --TOOLBOXS
      • DB2 commands and EXPLAIN
      • DB2 TRACES
    • EXAMPLE:Analysis of a simple deadlock scenario and solution
      • DBD is locked

LOCK OVERVIEW

WHY LOCKS ?DB2 Serialization Mechanisms

Data Consistency And Database Concurrency

DBMS區別與文件系統的最本質區別：DBMS支持事務
DBMS :Allowing multiple users to access a database simultaneously without compromising data integrity.
A transaction (or unit of work)is a recoverable sequence of one or more SQL operations that are grouped together as a single unit, usually within an application process.
One of the mechanisms DB2 uses to keep data consistent is the transaction. A transaction or(otherwise known as a unit of work) is a recoverable sequence of one or more SQL operations that are grouped together as a single unit, usually within an application process. The initiation and termination of a single transaction defines points of data consistency within a database; either the effects of all SQL operations performed within a transaction are applied to the database and made permanent (committed), or the effects of all SQL operations performed are completely "undone" and thrown away (rolled back).

Phenomena Seen When Transactions Run Concurrently

事務並發帶來的問題，為了解決這些問題，DB2定義了4種事務隔離級別。

1. LOST UPDATE
2. DIRTY READS
3. NON-REPEATABLE READS
4. PHANTOMS

Lost Updates

Occurs when two transactions read the same data, both attempt to update the data read, and one of the updates is lost

Transaction 1 and Transaction 2 read the same row of data and both calculate new values for that row based upon the original values read. If Transaction 1 updates the row with its new value and Transaction 2 then updates the same row, the update operation performed by Transaction 1 is lost

DIRTY READS

Occurs when a transaction reads data that has not yet been committed

Transaction 1 changes a row of data and Transaction 2 reads the changed row before Transaction 1 commits the change. If Transaction 1 rolls back the change, Transaction 2 will have read data that theoretically, never existed.

Non-Repeatable Reads

Occurs when a transaction executes the same query multiple times and gets different results with each execution

Transaction 1 reads a row of data, then Transaction 2 modifies or deletes that row and commits the change. When Transaction 1 attempts to reread the row, it will retrieve different data values

Phantoms

Occurs when a row of data that matches some search criteria is not seen initially

Transaction 1 retrieves a set of rows that satisfy some search criteria, then Transaction 2 inserts a new row that contains matching search criteria for Transaction 1’s query. If Transaction 1 re-executes the query that produced the original set of rows, a different set of rows will be retrieved – the new row added by Transaction 2 will now be included in the set of rows returned

LOCK PROPERTIES

LOCK OBJECT OWNER

這裡的object是指鎖所施加的對象，不同的鎖所能適用的對象是不同的。如PAGE LOCK的對象肯定是PAGE.
OWNER 表示誰持有鎖，有的是TRAN,有的是DB2 MEMBER
LOCK PARTICIPANTS

Locking is a complex interaction of many parts.

1. DBM1, where SQL executes, is the beginning of locking.
2. The IRLM, a separate address space, is where locks are held and managed. The DBM1 AS requests locks from the IRLM. In addition to its functionality of granting and releasing locks, the IRLM is also in charge of detecting deadlock and timeout situations.
3. In a data sharing environment, there are two other ingredients in the soup. The XCF address space is where its XCF component resides. The XES does some lock management and communicates directly with the lock structure in the coupling facility

   LOCK SIZE

   訪問數據的范圍
   設計鎖的顆粒度對系統和應用均有影響：設計時要綜合考慮
   1. 鎖本身也是一種資源，持有的lock size越大，鎖資源消耗越小
   2. lock size的大小與對應用訪問的並發（concurrent）成反比關系
   3. LOCK SIZE 帶來的另外一個副作用就是當你申請的鎖資源足夠多，以至於超過系統設定的閥值時（NUMLKUS/NUMLKTS/LOCK MAX =0,SYSTEM,N），
      lock size： PAGE/ROW /TABLE /PARENT LOCKS:TABLESPACE /PARTITION

      Page/Row locks are not compatible with tablespace locks The solution is "Intent Locking" Regardless of the locksize, DB2 will always start with a tablespace lock

      INTENT LOCKS:IS/IX USED whenever page or row locks are being used
      GROSS LOCKS:The gross locks (S, U, SIX and X) are tablespace locks which are used in three
      situations
   4. lock size tablespace
   5. lock table for a non-segmented tablespace
   6. lock escalation for a non-partitioned tablespace

      LOCK MODE

      數據的訪問方式：獨占還是共享 S/U/X
      X:exclusive, not sharable with other
      S:shared, sharable with other S-locks
      LOCK MODE之間的兼容性如下：SUXSYYNUYNNXNNN

      LOCK DURATION

持有數據的時間：commit，across commit(with hold)
FROM:START OF FIRST USE
TO :COMMIT OR MOMENTIALIY

LOCK REQUEST AND RELEASE

When modifying data (Insert, Update and Delete),DB2 determines all locking actions

1. Lock size Tablespace
   => lock is taken at first use
   => lock is released at commit or deallocate
2. SQL- Statement “Lock Table … in Exclusive Mode”
   => initially an IX-lock (on the tablespace)
   => lock is taken at first use
   => lock is released at commit or deallocate
3. Page lock and row lock
   => initially an IX-lock (on the tablespace)
   => then X-locks are taken on each page/row as needed
   => these X-locks are released at commit

LOCK AND TRAN ISOLATION LELVEL

每一種事務隔離級別鎖所能解決的問題

1. Repeatable Read
   => locks all data read by DB2
   => guarantees that exact the same result set will be returned when reusing the cursor
2. Read Stability
   => locks all data “seen” by the application
   => guarantees that at least the same result set will be returned when reusing the cursor
3. Uncommitted Read (UR)
   Pro:
   Our read will be “cheaper”
   We are not disturbing others
   Con:
   We may read data
   which may be “un-inserted”
   which may be “un-updated”
   When you are reading live (operational) data,you can never guarantee exact results
4. Cursor Stability (CS)
   => a lock is taken when the row is fetched
   => the lock is released when next row is fetched,
   or at end of data or at Close Cursor
   For page locks:
   => a lock is taken when the first row on the page is fetched
   => the lock is released when next page is fetched,
   or at end of data or at Close Cursor
   This means:When you have fetched a row and have not reached end of data or closed the cursor,
   you are holding an S-lock on the row or page
5. LOCK AVOIDANCE
   Updateable

   DECLARE upd_cur CURSOR FOR SELECT data1, data2 FROM table FOR UPDATE OF colx

   Read-Only

   DECLARE ro_cur CURSOR FOR SELECT DEPTNO, AVG(SALARY) FROM EMP GROUP BY DEPTNO

   Ambiguous

   DECLARE amb_cur CURSOR FOR SELECT data1, data2 FROM table

   => Use FOR READ ONLY or FOR FETCH ONLY
   If we have the following:

   Read-Only (or Ambiguous) Cursor
   Cursor Stability
   Currentdata No
   it is possible that we can get "Lock Avoidance“
   Lock avoidance is advantageous!
   A possible problem with Currentdata No:
   Fetch a row
   ...
   Update (or Delete) Where Key = :hostkey
   can give SQLSTATE="02000" (Not Found)

LOCKING PARAMETERS LOCATIONS

下面分別介紹了系統參數，應用參數如何影響LOCK行為

DDL

OBJECT DEFINITION,CREATE TABLESPACE:

1. LOCKMAX (INTEGER,SYSTEM)
2. LOCKSIZE
   DEFAULT:ANY
   OPTION:ANY,TABLESPACE,TABLE,PAGE,ROW,LOB
3. MAXROW: INTEGER
   DEFAULT:255
   USED TO increase concurrency
   MAXROWS 1Used to emulate row-level locking
   locking without the costs of page p-lock processing
4. MEMBERCLUSTER:(P-LOCK)
   Clustering per member
   Reduce p-lock contentions forspace mappages
   Destroys clustering according to clustering index
5. TRACKMOD (P-LOCK)
   DEFAUTL:NO
   OPTION:YES/NO

DML

1. LOCK TABLE
   SYNTAX:LOCK {TABLE, TABLESPACE [partno]} IN
   {EXCLUSIVE, SHARE} MODE
2. Cursor Definitions
   FOR UPDATE OF
   FOR READ ONLY
   1. Tells DB2 the result set is read-only
   2. Positioned UPDATEs and DELETEs are not allowed
   3. No U or X locks will be obtained for the cursor
3. Isolation Clause
   WITH [UR, CS, RS, RR]
   1. USE AND KEEP EXCLUSIVE LOCKS
   2. USE AND KEEP UPDATE LOCKS
   3. USE AND KEEP SHARE LOCKS

Precompiler Locking Parameters

NOFOR Option:NO FOR update clause mandatory for positioned updates
STDSQL(YES): Implies NOFOR

Bind Locking Parameters

1. CURRENTDATA
   FUNCTION:CURRENTDATA helps to determine if DB2 will attempt to avoid locks
   mean:Must the data in program be equal to the data at the current cursor position
   lock aovidance
   demo:

   CURRENTDATA(NO)
   note
2. ISOLATION
3. RELEASE

Zparm Locking Parameters

ZPARMMEANINGURCHKTHUR Checkpoint Frequency ThresholdURLGWTHUR Log Write ThresholdLRDRTHLDLong-Running ReaderRELCURHLRelease Held LockEVALUNCEvaluate UncommittedSKIPUNCISkip Uncommitted InsertsRRULOCKU lock for RR/RSXLKUPDLTX lock for searched U/DNUMLKTSLocks per Table(space)NUMLKUSLocks per User

CLAIM AND DRAIN

BETWEEN SQL AND SQL:DB2 USE LOCKS
BETWEEN UTILITY AND SQL:DB2 USE CLAIM AND DRAIN
BASE:
FOR EACH OBJECT(TABLESPACE,PARTITION,TABLE,IDNEXSPACE),THERE IS A CLAIM-COUNT
WHICH IS INCREASED 1 AT START AND DECREASE BY 1 AT COMMIT
A utility starts with a Drain
No new Claims are allowed (wait, maybe timeout)
If the Claim-count >0 the utility waits (maybe timeout)
When the Claim-count reaches zero, the utility can continue
Two important situations:

• UR (Uncommitted Read) takes no locks – but increases Claim-count (UR REQUEST MASS-DELETE LOCKS)
• For Cursor With Hold the Claim-count is not reduced at Commit

  A claim is a notification to DB2 that a particular object is currently being accessed. Claims usually do not continue to exist beyond the commit point one exception being a Cursor with Hold. In order to access the DB2 object within the next unit of work, an application needs to make a new claim.Claims notify DB2 that there is current interest in or activity on a DB2 object.Even if Uncommitted Read doesn’t take any locks, a claim is taken. As long as there are any claims on a DB2 object, no drains may be taken on the object until those claims are released.

A drain is the action of obtaining access to a DB2 object, by:Preventing any new claims against the object.Waiting for all existing claims on the object to be released.

A drain on a DB2 object causes DB2 to quiesce all applications currently claiming that resource, by allowing them to reach a commit point but preventing them (or any other application process) from making a new claim.A drain lock also prevents conflicting processes from trying to drain the same object at the same time.
Utilities detect claimers are present and wait
Drain Write waits for all write claims to be released
Drain All waits for claims on all classes to be released
SHRLEVEL(CHANGE) Utilities are CLAIMers

LATCH

Latches – managed by DB2
? BM page latching for index and data pages
? DB2 internal latching (many latches grouped into 32 latch classes)
? Latches – managed by IRLM
? Internal IRLM serialization

ADVANCED TOPICS

雖然標題是advanced topics,其實涉及的內容並沒有本質的區別，只不過我們在看待問題，分析問題時需要從單個DB2 SUBSYSTEM的視角上升到DBMS CLUSTER的高度，即DATA SHARING GROUP的高度。為了處理不同的member之間共享數據的COHERENCY問題，DB2引入P-LOCK,區別主要在於單個DB2 SUBSYSTEM中的LOCK owner均為tran，而P-LOCK的owner為DB2 SUBSYSTEM.因此這裡的內容按照這種分類進行介紹L-LOCK,P-LOCK,RETAINED LOCK，這幾種鎖之間的區別需要了解。

L-LOCK(EXPLICIT HIERARCHICAL LOCKING )EHL

特點：

THE KIND YOU HAVE IN BOTH DATA SHARING AND NON DATA SHARING SUBSYTEM THEN CONTROL DATA CONCRRRENCY OF ACCESS TO OBJECTS THEN CAN BE LOCAL OR GLOBAL THEY ASSOTIATED WITH PROGRAMS

WHY IS HIERACHICAL

SO THE MEMBER DB2 SUBSYSTEM WILL NOT PROPAGATE L-LOCKS TO THE CF UNNECESSARILY

1. PARENT LOCK
   PARENT LOCK ARE TABLE SPACE LOCKS OR DATA PARTITION LOCK
   GROSS LOCKS ARE ALWAYS GLOBAL LOCKS
2. CHILD LOCK
   PAGE /ROW LOCK
   EXCEPTION: MAYBE TABLES LOCKS IF SEGMENT TABLESPACE
   PAGE/ROW LOCK CAN BE GRANTED LOCALLY IF NOT IN INTER-DB2 R/W SHARING STATE
   ASYNCHRONOUS CHILD PROPAGATION WHEN INTER-SYTEM INTEREST FIST OCCUR
3. L-LOCK PROPAGATION
   NOT ALL L-LOCKS ARE PROPAGATED TO THE DB2 LOCK STRUCTURE
   PARENT L-LOCKS ARE ALMOST ALWAYS PROPAGATE TO THE DB2 LOCK STRUCTURE
4. Child Locks Propagation based on Pageset P-lock
   Now based on cached(held) state of the pageset P-lock
   If pageset P-lock negotiated from X to SIX or IX, then child L-locks propagated
   Reduced volatility
   If P-lock not held at time of child L-lock request, child lock will be propagated
   "Index-only" scan (if any locks taken) must open table space
   Parent L-lock no longer need to be held in cached state after DB2 failure
   A pageset IX L-lock no longer held as a retained X lock
   Important availability benefit in data sharing
   CHILD L-LOCKS ARE PROPAGATED TO THE DB2 LOCK STRUCTURE ONLY IF THERE IS INTER DB2 PARENT L-LOCKS CONFICT ON A DATABASES OBJECT

PHYSICAL LOCK

特點：
EXCLUSIVE TO DATA SHARING
ARE ONLY GLOBAL
USED TO MAINTAIN DATA COHERENCY IN DATA SHARING
ALSO USED TO MAINTAIN EDMPOOL CONSISTENCY AMONG MEMBERS
ASSOTIATED BY(OWNED BY) DB2 MEMBERS
P-LOCK CAN BE NEGOTIATTED BETWEEN DB2 MEMBERS
NO TIMEOUT OR DEADLOCK DETECTION
分類

1. PAGE SET P-LOCK
2. PAGE P-LOCK
3. PAGE SET/PARTITION CASTOUT P-LOCK

4.


5.


6. GBP STRUCTURE P-LOCK

   RETAINED LOCKS(UPDATE LOCKS)

   AIM:PROTECT UNCOMMITED DATA FROM ACCESS BY THER LOCK STRUCTURE
   UPDATE(IX,SIX,X)
   GLOBAL LOCKS ARE RETAINED AFTER FAILTURE

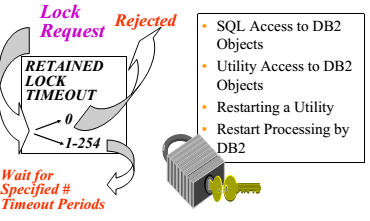

   IMPACT OF Retained LOCKS



   The ONLY way to clear retained locks is by estarting the failed DB2 subsystem.

   LOCK SCOPE:

   LOCAL LOCK

GLOBAL LOCK

A LOCK THAT A DB2 SHARING DB2 MEMBERHAS TOMAKE KNOWN TO OTHERS MEMBERS OF THIS DATA SHARING GROUP
THE IRLM VIA XES,PROPAGATE TO THES LOCKS TO THE STRUCTURE IN THE CF

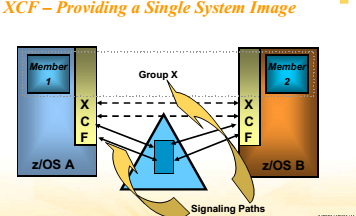

XCF,XES的內容在XES contention部分介紹。

GLOBAL LOCK COMMUNICATION

HOW ARE GLOBAL LOCK REQUESTS MADE KNOWN TO OTHER DB2 MEMBERS?

THEY ARE PROPAGATED TO DB2 LOCK STRUCTURE

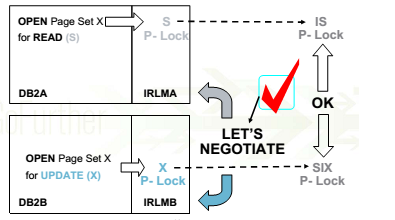

Page Set P-Lock Negotiation

與APPLICATION LOCK不同的是，PHYSCIAL LOCK 可以做Page Set P-Lock Negotiation。

上圖展示了INERDB2 READ/WRITE INTEREST場景下的PAGE SET P-LOCK NEGOTIATION。所謂的negotiation就是鎖請求方以及鎖申請方將鎖請求均DOWNGRADE，從而達到compatible的目的。需要注意的是，PAGE SET P-LOCK STATE狀態的變化需要涉及IRLM以及XCF通訊機制。PAGE SET P-LOCK對GLOBAL BUFFER POOL起一種標志作用，
對於READ的DB2 SUBSYSTEM, must register its
interest in read pages in the GBP directory
對於UPDATER的DB2 SUBSYSTEM,must write updated pages to the group buffer pool and register those updated pages in the GBP directory

CF LOCK STRUCTURE

DEVIDE INTO TWO PARTS OF CF LOCK STRUCTURE RATIO OF LAST TWO COMPONETS DEFAULT ROUGHLY 50%CAN BE ALTERED BY IRLM PARAMETER

MODIFIED RESOURCE LIST(MRL)

OVERVIEW OF MRL STRUCTURE

ACTIVEstatus of active means that the DB2 system is running.
Retained, on the other hand, means that a DB2 and/or its associated IRLM has failed
CONTAINS ENTRIES FOR ALL CRURENTLY HELD MODIFY LOCKS
IN THE EVENT OF DB2 FAILTURE ENSURE THAT OTHER MEMBER OF DB2 KNOW WHICH LOCKS MUST BERETIANED
It is essentially a list structure that lists all the update or modify locks in the data sharing group
DISPLAY GROUP ; Display “LIST ENTRIES IN USE”

 NUMBER LIST ENTRIES : 7353, LIST ENTRIES IN USE: 1834

WARNING: When the LIST ENTRIES IN USE catches up to the NUMBER LIST ENTRIES, new modify lock requests will not be granted, and transactions will begin to fail with -904s.

LOCK TABLE

A 'POOL' OF HASH POINTERS
CONTAINS ENTRIES FOR ALL READ AND MODIFY LOCKS
USED FOR GLOBAL LOCK CONTENTION
It is very difficult to keep track of how full a randomly populated table is, so the only way to track its utilization is indirectly. In DB2 data sharing, that tracking mechanism is false contention
SIZE OF EACH INDIVIDUAL ENTRY SET BY MAXUSRS PARAMETER IN IRLMPROC OF FIRST IRLM JOIN THE GROUP
NUMBER OF MEMBER IN THE GROUP

XCF

其實主要的目的就是提供INTER-SUBSYTEM之間通訊的API，主要的功能有三個：

1. Signaling Services provide a method for communicating between members of the same XCF roup, which is a set of related members defined to XCF by a multisystem application. This function supports the single system image concept of a parallel sysplex, both by providing communication etween subsystems, such as DB2 members, as well as z/OS components in each image.
2. Group Services allow multisystem applications to define groups and their members to XCF. Group services also provide the means for requesting information about the other members in the same XCF group, using SETXCF commands.
3. Status Monitoring Services of XCF provide the means for monitoring the status of other z/OS systems in the same sysplex.

   XES

   提供了不同的SUBSYSTEM訪問CF的API。XES本身僅支持兩種鎖類型，即S|X類型。但是DB2 SUBSYTEMB本身支持多種不同類型的鎖，這就帶來一個問題，這些鎖類型在上送到CF時，應該如何映射，DB2 V7 Protocol Level 1和V8 Protocol Level 2的處理差別比較大，當然這種變化的目的還是在保證能完全檢測到鎖沖突的前提下，減少上送到CF鎖的請求次數，優化全局鎖檢測機制。V7到V8優化的出發點還是進一步的解決XES鎖映射問題,V8到V10甚至V11基本上無變化，可見V8優化的意義之重大。
   DB2在DATA SHARING 下是顯式的三級鎖結構，TWO LEVELS OF APPLICATION LOCKS外加DB2 member級別的PAGE SET P LOCK.
   DB2 PAGE SET P-LOCK的狀態變化如下圖：actionDB2 member interest page set p lockSTAE CHANGEopenPP-LOCK S/ISNONE->R/OPSEUDO OPENPP-LOCK IX/SIX/X/UR/O->R/WPSEDUO CLOSEPP-LOCK S/ISR/W->R/OPhysical CLOSENONER/O->NONE

XES CONTENTION

產生的根源為XES本身設計時僅支持兩種鎖類型，
?XES Contention = XES-level resource contention as XES
only understands S or X
eg member 1 asking for IX and member 2 for IS
Big relief in V8

FALSE CONTENTION

產生的根源主要是由於DB2 lock table定義的太小或是hash算法離散型不夠好，導致不同的DB2資源hash到同一lock table hash class上而產生的沖突，可以通過放大CF lock table來解決，因此FALSE CONTENTION標志著 CF LOCK STRUCTURE的大小是否合適。

GLOBAL CONTENTION

GLOBAL CONTENTION 本身包含XES CONTENTION,FALSE CONTENTION,REAL CONTENTION,其中REAL CONTENTION 確實為資源沖突，如資源熱點，其它的兩種沖突是由於引入DATA SHARING 的OVERHEAD

根據上面的介紹，下面給出A DB2 Performance Tuning Roadmap-2data sharing BLOCK的一個展示

L-LOCK(SHARING)部分表明了數據共享的程度
P/L XES CONTENTION表明P-LOCK,L-LOCK中需要上送CF的比例。其中P-LOCK需要上送的大部分為PAGE P-LOCK.

DATA SHARING ACTIVITY REPORT

Lock Structure Shortage Actions

WHEN YOU Running Out of Space in the Lock Structure:
DXR170IDJP5005 THE LOCK STRUCTURE DSNDB0G_LOCK1 IS 50%(60%,70%) IN USE
DXR142IDJP5005 THE LOCK STRUCTURE DSNDB0G_LOCK1 IS zz% IN USE
ACTION:

1. Check for ‘DOWN’ DB2s holding Retained Locks
2. RESTART DB2s to Reclaim Lock List Space
3. Lower the Lock Escalation Values to Lower Number of Locks
4. Increase Size of Lock Structure

   DYNAMICALLY:SETXCF START,ALTER,STRNAME=DSNDB0G_LOCK1,SIZE=newsize Only Increases Lock List Table (MRL)REBUILDING – Two Methods:Letting IRLM Split Lock Structure (1:1) Change the INITSIZE, SIZE in CFRM Policy START New Policy Rebuild Lock Structure Using LTE= or F xxxx,SET,LTE=yy

Types of locking problems

1. TIMEOUT
2. DEADLOCK
3. LOCK ESCALATION
4. LONG(LOCK) SUSPENTION TIMES
5. EXCESSIVE NUMBERS OF LOCKS ACQUIRED
   DEMO:




How do I find out I have a problem

Concurrency warning signs
(Periodic) monitoring for concurrency problems

MESSAGEEXPLAINSTAT CLASSDSNT375IDeadlock messageIFCID 172DSNT376ITimeout messageIFCID 196DSNT501IResource unavailable msgNONEDSNI031ILock escalationIFCID 337DSNJ031IUncommitted UR with many log ecordsIFCID 313DSNR035IUncommitted UR for a number of system CHECKPONITSNONEDSNB260ILong running readerNONE

Analyzing concurrency problems --TOOLBOXS

DB2 commands and EXPLAIN

DISPLAY DATABASE USE/RESTRICT/CLAIMERS/LOCKSDoes not provide info about all locks (eg. page/row locks are not shown)DISPLAY THD TYPE(* / ACTIVE / INACTIVE / SYSTEM / INDOUBT / POSTPONED / PROC)  Note that ‘*’ displays only active, indoubt, postponed, and system threads  Use LIMIT(*) to avoid output truncation

EXAMPLE:
>
HOW TO INTERPRETING -DISPLAY LOCKS OUTPUT:
DSN397I -DB8A
NAME TYPE PART STATUS CONNID CORRID LOCKINFO
TSNAME TS RW TSO XXXX H-IX,S,C
AGENT TOKEN(9999)

TABLE OF LOCKS

STATUSSTATE-LSTATE-PTYPEDURATIONL-LOCK+DRAIN LOCKP-LOCKFREE TIMEH:HOLDINGISIXS:TS L-LOCKW:WAITINGIXIXT:TB L-LOCKR:RETAINEDSSP:PT L-LOCKU[^FT1]C:CS DRAINLOCKSIX[^FT2]SIXR:RR DRAIN LOCKXXW:WR DRAIN LOCKW:NUMBER IN THE WAITTING QUEUENSUPAGE P:PAGE SET P-LOCKR:N/A

SOMETHING YOU NEED TO NOTICE:
PLAN_TABLE ‐ TSLOCKMODE column
Info depends on whether or not DB2 can determine the isolation level at bind/prepare time
Only applies to gross L‐ locks (TS/table lock)

DB2 TRACES

關於trace的內容，在新年開篇第一篇博客裡面已經進行了介紹，這裡主要介紹一些highlight：
subsystem services/drda remote locations
non-data sharing locks
datasharing lock section
system addres cpu time
latch contention section
DML/DDL/DCL
GBP SECTION(稍後單獨拿出一章進行整理)
如果你想更深入的一步進行測試，可以通過臨時開啟對應的Zooming in using detailed trace data進行,最好在vendor的建議下開啟。
NEXT WHAT TO CONSIDER ABOUT TRANSACTION LOCKING:

1. Relationship between LOCK and UNLOCK
2. Relationship between LOCK and COMMIT
3. Relationship between LOCK and DML

EXAMPLE:Analysis of a simple deadlock scenario and solution

本文所有的內容均整理自互聯網，僅供參考學習，如有涉及版權問題，請自行刪除本文，謝謝。
