Android 中 View 繪制流程分析

創建Window

在Activity的attach方法中通過調用PolicyManager.makeNewWindo創建Window,將一個View add到WindowManager時，WindowManagerImpl創建一個ViewRoot來管理該窗口的根View。並通過ViewRoot.setView方法把該View傳給ViewRoot。

final void attach(Context context, ActivityThread aThread,
        Instrumentation instr, IBinder token, int ident,
        Application application, Intent intent, ActivityInfo info,
        CharSequence title, Activity parent, String id,
        NonConfigurationInstances lastNonConfigurationInstances,
        Configuration config) {
    attachBaseContext(context);

    mFragments.attachActivity(this, mContainer, null);

    mWindow = PolicyManager.makeNewWindow(this);
    mWindow.setCallback(this);
    mWindow.getLayoutInflater().setPrivateFactory(this);

創建DecorView

DecorView為整個Window界面的最頂層View。

Activity中的Window對象幫我們創建了一個PhoneWindow內部類DecorView（父類為FrameLayout）窗口頂層視圖，然後通過LayoutInflater將xml內容布局解析成View樹形結構添加到DecorView頂層視圖中id為content的FrameLayout父容器上面。Activity的content內容布局最終會添加到DecorView窗口頂層視圖上面。

protected boolean initializePanelDecor(PanelFeatureState st) {
    st.decorView = new DecorView(getContext(), st.featureId);
    st.gravity = Gravity.CENTER | Gravity.BOTTOM;
    st.setStyle(getContext());

    return true;
}

創建ViewRoot並關聯View

WindowManagerImpl保存DecorView到mViews，創建對應的ViewRoot；

ViewRoot用於管理窗口的根View，並和global window manger進行交互。ViewRoot中有一個nested class： W，W是一個Binder子類，用於接收global window manager的各種消息， 如按鍵消息， 觸摸消息等。 ViewRoot有一個W類型的成員mWindow，ViewRoot在Constructor中創建一個W的instance並賦值給mWindow。 ViewRoot是Handler的子類， W會通過Looper把消息傳遞給ViewRoot。 ViewRoot在setView方法中把mWindow傳給sWindowSession。

public void addView(View view, ViewGroup.LayoutParams params,
        Display display, Window parentWindow) {
    if (view == null) {
        throw new IllegalArgumentException("view must not be null");
    }
    if (display == null) {
        throw new IllegalArgumentException("display must not be null");
    }
    if (!(params instanceof WindowManager.LayoutParams)) {
        throw new IllegalArgumentException("Params must be WindowManager.LayoutParams");
    }

    final WindowManager.LayoutParams wparams = (WindowManager.LayoutParams)params;
    if (parentWindow != null) {
        parentWindow.adjustLayoutParamsForSubWindow(wparams);
    }

    ViewRootImpl root;
    View panelParentView = null;

    synchronized (mLock) {
        // Start watching for system property changes.
        if (mSystemPropertyUpdater == null) {
            mSystemPropertyUpdater = new Runnable() {
                @Override public void run() {
                    synchronized (mLock) {
                        for (ViewRootImpl viewRoot : mRoots) {
                            viewRoot.loadSystemProperties();
                        }
                    }
                }
            };
            SystemProperties.addChangeCallback(mSystemPropertyUpdater);
        }

        int index = findViewLocked(view, false);
        if (index >= 0) {
            throw new IllegalStateException("View " + view
                    + " has already been added to the window manager.");
        }

        // If this is a panel window, then find the window it is being
        // attached to for future reference.
        if (wparams.type >= WindowManager.LayoutParams.FIRST_SUB_WINDOW &&
                wparams.type <= WindowManager.LayoutParams.LAST_SUB_WINDOW) {
            final int count = mViews != null ? mViews.length : 0;
            for (int i=0; i<count; i++) {
                if (mRoots[i].mWindow.asBinder() == wparams.token) {
                    panelParentView = mViews[i];
                }
            }
        }

        root = new ViewRootImpl(view.getContext(), display);

        view.setLayoutParams(wparams);

        if (mViews == null) {
            index = 1;
            mViews = new View[1];
            mRoots = new ViewRootImpl[1];
            mParams = new WindowManager.LayoutParams[1];
        } else {
            index = mViews.length + 1;
            Object[] old = mViews;
            mViews = new View[index];
            System.arraycopy(old, 0, mViews, 0, index-1);
            old = mRoots;
            mRoots = new ViewRootImpl[index];
            System.arraycopy(old, 0, mRoots, 0, index-1);
            old = mParams;
            mParams = new WindowManager.LayoutParams[index];
            System.arraycopy(old, 0, mParams, 0, index-1);
        }
        index--;

        mViews[index] = view;
        mRoots[index] = root;
        mParams[index] = wparams;
    }

    // do this last because it fires off messages to start doing things
    try {
        root.setView(view, wparams, panelParentView);
    } catch (RuntimeException e) {
        // BadTokenException or InvalidDisplayException, clean up.
        synchronized (mLock) {
            final int index = findViewLocked(view, false);
            if (index >= 0) {
                removeViewLocked(index, true);
            }
        }
        throw e;
    }
}

ViewRoot是GUI管理系統與GUI呈現系統之間的橋梁，需要注意它並不是一個View類型。

它的主要作用如下：

1、向DecorView分發收到的用戶發起的event事件，如按鍵，觸屏，軌跡球等事件；
2、與WindowManagerService交互，完成整個Activity的GUI的繪制。

View繪制基本流程

這裡先給出Android系統View的繪制流程：依次執行View類裡面的如下三個方法：

measure(int ,int) :測量View的大小
layout(int ,int ,int ,int) ：設置子View的位置
draw(Canvas) ：繪制View內容到Canvas畫布上

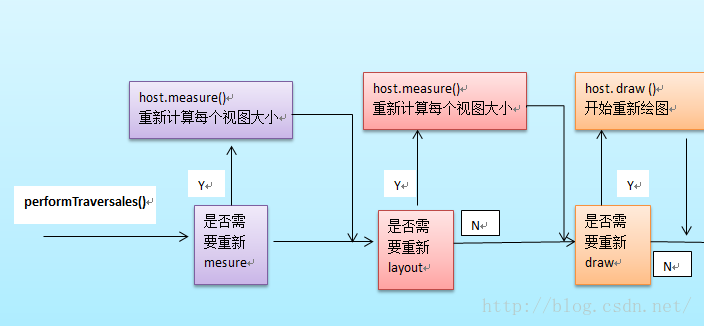

整個View樹的繪圖流程是在ViewRoot.Java類的performTraversals()函數展開的，該函數做的執行過程可簡單概況為根據之前設置的狀態，判斷是否需要重新計算視圖大小(measure)、是否重新需要安置視圖的位置(layout)、以及是否需要重繪 (draw)

 mesarue()測量過程

主要作用：為整個View樹計算實際的大小，即設置實際的高(mMeasuredHeight)和寬(mMeasureWidth)，每個View的控件的實際寬高都是由父視圖和本身視圖決定的。

具體的調用如下：

ViewRootImpl 的performTraversals方法中，調用measureHierarchy，然後調用performMeasure

private void performMeasure(int childWidthMeasureSpec, int childHeightMeasureSpec) {
       Trace.traceBegin(Trace.TRACE_TAG_VIEW, "measure");
       try {
           mView.measure(childWidthMeasureSpec, childHeightMeasureSpec);
       } finally {
           Trace.traceEnd(Trace.TRACE_TAG_VIEW);
       }
   }

ViewRoot根對象地屬性mView(其類型一般為ViewGroup類型)調用measure()方法去計算View樹的大小，回調View/ViewGroup對象的onMeasure()方法，該方法實現的功能如下：

1、設置本View視圖的最終大小，該功能的實現通過調用setMeasuredDimension()方法去設置實際的高(mMeasuredHeight)和寬(mMeasureWidth)

2、如果該View對象是個ViewGroup類型，需要重寫onMeasure()方法，對其子視圖進行遍歷的measure()過程。

對每個子視圖的measure()過程，是通過調用父類ViewGroup.java類裡的measureChildWithMargins()方法去實現，該方法內部只是簡單地調用了View對象的measure()方法。

整個measure調用流程就是個樹形的遞歸過程measure()方法兩個參數都是父View傳遞過來的，也就是代表了父view的規格。他由兩部分組成，高2位表示MODE，定義在MeasureSpec類（View的內部類）中，有三種類型，MeasureSpec.EXACTLY表示確定大小， MeasureSpec.AT_MOST表示最大大小， MeasureSpec.UNSPECIFIED不確定。低30位表示size，也就是父View的大小。對於系統Window類的DecorVIew對象Mode一般都為MeasureSpec.EXACTLY ，而size分別對應屏幕寬高。對於子View來說大小是由父View和子View共同決定的。

protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    setMeasuredDimension(getDefaultSize(getSuggestedMinimumWidth(), widthMeasureSpec),
            getDefaultSize(getSuggestedMinimumHeight(), heightMeasureSpec));
}

protected final void setMeasuredDimension(int measuredWidth, int measuredHeight) {
     boolean optical = isLayoutModeOptical(this);
     if (optical != isLayoutModeOptical(mParent)) {
         Insets insets = getOpticalInsets();
         int opticalWidth  = insets.left + insets.right;
         int opticalHeight = insets.top  + insets.bottom;

         measuredWidth  += optical ? opticalWidth  : -opticalWidth;
         measuredHeight += optical ? opticalHeight : -opticalHeight;
     }
     mMeasuredWidth = measuredWidth;
     mMeasuredHeight = measuredHeight;

     mPrivateFlags |= PFLAG_MEASURED_DIMENSION_SET;
 }

layout布局過程

主要作用 ：為將整個根據子視圖的大小以及布局參數將View樹放到合適的位置上。

具體的調用如下：

ViewRootImpl 的performTraversals方法中，調用performLayout

private void performLayout(WindowManager.LayoutParams lp, int desiredWindowWidth,
        int desiredWindowHeight) {
    mLayoutRequested = false;
    mScrollMayChange = true;
    mInLayout = true;

    final View host = mView;
    if (DEBUG_ORIENTATION || DEBUG_LAYOUT) {
        Log.v(TAG, "Laying out " + host + " to (" +
                host.getMeasuredWidth() + ", " + host.getMeasuredHeight() + ")");
    }

    Trace.traceBegin(Trace.TRACE_TAG_VIEW, "layout");
    try {
        host.layout(0, 0, host.getMeasuredWidth(), host.getMeasuredHeight());

        mInLayout = false;
        int numViewsRequestingLayout = mLayoutRequesters.size();
        if (numViewsRequestingLayout > 0) {
            // requestLayout() was called during layout.
            // If no layout-request flags are set on the requesting views, there is no problem.
            // If some requests are still pending, then we need to clear those flags and do
            // a full request/measure/layout pass to handle this situation.
            ArrayList<View> validLayoutRequesters = getValidLayoutRequesters(mLayoutRequesters,
                    false);
            if (validLayoutRequesters != null) {
                // Set this flag to indicate that any further requests are happening during
                // the second pass, which may result in posting those requests to the next
                // frame instead
                mHandlingLayoutInLayoutRequest = true;

                // Process fresh layout requests, then measure and layout
                int numValidRequests = validLayoutRequesters.size();
                for (int i = 0; i < numValidRequests; ++i) {
                    final View view = validLayoutRequesters.get(i);
                    Log.w("View", "requestLayout() improperly called by " + view +
                            " during layout: running second layout pass");
                    view.requestLayout();
                }
                measureHierarchy(host, lp, mView.getContext().getResources(),
                        desiredWindowWidth, desiredWindowHeight);
                mInLayout = true;
                host.layout(0, 0, host.getMeasuredWidth(), host.getMeasuredHeight());

                mHandlingLayoutInLayoutRequest = false;

                // Check the valid requests again, this time without checking/clearing the
                // layout flags, since requests happening during the second pass get noop'd
                validLayoutRequesters = getValidLayoutRequesters(mLayoutRequesters, true);
                if (validLayoutRequesters != null) {
                    final ArrayList<View> finalRequesters = validLayoutRequesters;
                    // Post second-pass requests to the next frame
                    getRunQueue().post(new Runnable() {
                        @Override
                        public void run() {
                            int numValidRequests = finalRequesters.size();
                            for (int i = 0; i < numValidRequests; ++i) {
                                final View view = finalRequesters.get(i);
                                Log.w("View", "requestLayout() improperly called by " + view +
                                        " during second layout pass: posting in next frame");
                                view.requestLayout();
                            }
                        }
                    });
                }
            }

        }
    } finally {
        Trace.traceEnd(Trace.TRACE_TAG_VIEW);
    }
    mInLayout = false;
}

host.layout()開始View樹的布局，繼而回調給View/ViewGroup類中的layout()方法。具體流程如下

1 、layout方法會設置該View視圖位於父視圖的坐標軸，即mLeft，mTop，mLeft，mBottom(調用setFrame()函數去實現)，接下來回調onLayout()方法(如果該View是ViewGroup對象，需要實現該方法，對每個子視圖進行布局)。

2、如果該View是個ViewGroup類型，需要遍歷每個子視圖chiildView，調用該子視圖的layout()方法去設置它的坐標值。

protected void onLayout(boolean changed, int left, int top, int right, int bottom) {
}

public void layout(int l, int t, int r, int b) {
    int oldL = mLeft;
    int oldT = mTop;
    int oldB = mBottom;
    int oldR = mRight;
    boolean changed = isLayoutModeOptical(mParent) ?
            setOpticalFrame(l, t, r, b) : setFrame(l, t, r, b);
    if (changed || (mPrivateFlags & PFLAG_LAYOUT_REQUIRED) == PFLAG_LAYOUT_REQUIRED) {
        onLayout(changed, l, t, r, b);
        mPrivateFlags &= ~PFLAG_LAYOUT_REQUIRED;

        ListenerInfo li = mListenerInfo;
        if (li != null && li.mOnLayoutChangeListeners != null) {
            ArrayList<OnLayoutChangeListener> listenersCopy =
                    (ArrayList<OnLayoutChangeListener>)li.mOnLayoutChangeListeners.clone();
            int numListeners = listenersCopy.size();
            for (int i = 0; i < numListeners; ++i) {
                listenersCopy.get(i).onLayoutChange(this, l, t, r, b, oldL, oldT, oldR, oldB);
            }
        }
    }
    mPrivateFlags &= ~PFLAG_FORCE_LAYOUT;
}

draw()繪圖過程

ViewRootImpl 的performTraversals方法中，調用了mView的draw方法

mView.draw()開始繪制，draw()方法實現的功能如下：

1 、繪制該View的背景
2 、為顯示漸變框做一些准備操作
3、調用onDraw()方法繪制視圖本身   (每個View都需要重載該方法，ViewGroup不需要實現該方法)
4、調用dispatchDraw ()方法繪制子視圖(如果該View類型不為ViewGroup，即不包含子視圖，不需要重載該方法)

值得說明的是，ViewGroup類已經為我們重寫了dispatchDraw ()的功能實現，應用程序一般不需要重寫該方法，但可以重載父類函數實現具體的功能。

dispatchDraw()方法內部會遍歷每個子視圖，調用drawChild()去重新回調每個子視圖的draw()方法。

5、繪制滾動條

刷新視圖

Android中實現view的更新有兩個方法，一個是invalidate，另一個是postInvalidate，其中前者是在UI線程自身中使用，而後者在非UI線程中使用。

requestLayout()方法 ：會導致調用measure()過程 和 layout()過程 。

說明：只是對View樹重新布局layout過程包括measure()和layout()過程，不會調用draw()過程，但不會重新繪制
任何視圖包括該調用者本身。
一般引起invalidate()操作的函數如下：

1、直接調用invalidate()方法，請求重新draw()，但只會繪制調用者本身。

2、setSelection()方法 ：請求重新draw()，但只會繪制調用者本身。

3、setVisibility()方法 ： 當View可視狀態在INVISIBLE轉換VISIBLE時，會間接調用invalidate()方法，繼而繪制該View。

4 、setEnabled()方法 ： 請求重新draw()，但不會重新繪制任何視圖包括該調用者本身。

內容參考源碼，借鑒了網上的一些分析。
