詳解android使用ItemDecoration 懸浮導航欄效果

編輯:關於Android編程

開始逐漸領略到ItemDecoration的美~

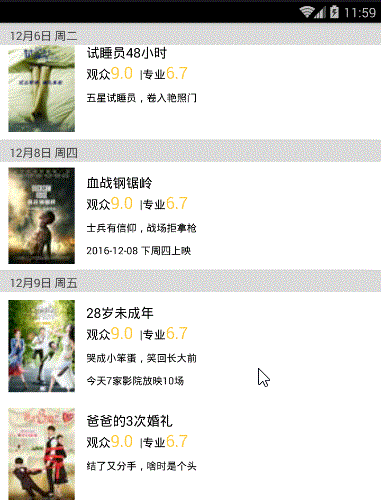

今天讓我 使用 ItemDecoration 來完成 可推動的懸浮導航欄的效果,最終實現的效果如下圖:

20161204135240604

具體實現步驟如下:

根據我前面的文章所講的RecyclerView的基本使用,我們先來完成基本的recyclerView:

第一步:布局裡寫一個RecyclerView

第二步:實例化

recyclerView = (RecyclerView) findViewById(R.id.recyclerView);

第三步:獲取所需的數據 (這裡我們來個真實點的情景,去聯網請求數據)

/**
  * 聯網請求所需的url
  */
  public String url="http://api.meituan.com/mmdb/movie/v2/list/rt/order/coming.json?ci=1&limit=12&token=&__vhost=api.maoyan.com&utm_campaign=AmovieBmovieCD-1&movieBundleVersion=6801&utm_source=xiaomi&utm_medium=android&utm_term=6.8.0&utm_content=868030022327462&net=255&dModel=MI%205&uuid=0894DE03C76F6045D55977B6D4E32B7F3C6AAB02F9CEA042987B380EC5687C43&lat=40.100673&lng=116.378619&__skck=6a375bce8c66a0dc293860dfa83833ef&__skts=1463704714271&__skua=7e01cf8dd30a179800a7a93979b430b2&__skno=1a0b4a9b-44ec-42fc-b110-ead68bcc2824&__skcy=sXcDKbGi20CGXQPPZvhCU3%2FkzdE%3D";
//聯網獲取數據
    getDataFromNet();
/**
   * 使用okhttpUtils進行聯網請求數據
   */
  private void getDataFromNet() {
    OkHttpUtils.
        get()
        .url(url)
        .build()
        .execute(new StringCallback() {
          @Override
          public void onError(okhttp3.Call call, Exception e, int id) {
            Log.e("TAG", "聯網失敗" + e.getMessage());
          }

          @Override
          public void onResponse(String response, int id) {
            Log.e("TAG", "聯網成功==" + response);

            //聯網成功後使用fastjson解析
            processData(response);
          }
        });
  }
/**
   * 使用fastjson進行解析
   *
   * @param json
   */
  private void processData(String json) {
    //這裡使用GsonFormat生成對應的bean類
    JSONObject jsonObject = parseObject(json);

    String data = jsonObject.getString("data");
    JSONObject dataObj = JSON.parseObject(data);

    String coming = dataObj.getString("coming");
    List<WaitMVBean.DataBean.ComingBean> comingslist = parseArray(coming, WaitMVBean.DataBean.ComingBean.class);

    //測試是否解析數據成功
//    String strTest = comingslist.get(0).getCat();
//    Log.e("TAG", strTest + "222");

     //解析數據成功,設置適配器-->

    }

  }

第四步:解析數據成功後,創建並設置適配器,並傳遞相關數據

//解析數據成功,設置適配器
      MyRecyclerAdapter adapter = new MyRecyclerAdapter( mContext,comingslist);
      recyclerView.setAdapter(adapter);

適配器:

public class MyRecyclerAdapter extends RecyclerView.Adapter {

  private final List<WaitMVBean.DataBean.ComingBean> comingslist;
  private final Context mContext;
  private final LayoutInflater mLayoutInflater;

  public MyRecyclerAdapter(Context mContext, List<WaitMVBean.DataBean.ComingBean> comingslist) {
    this.mContext = mContext;
    this.comingslist = comingslist;
    mLayoutInflater = LayoutInflater.from(mContext);
  }

  @Override
  public RecyclerView.ViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
    return new MyViewHolder(mLayoutInflater.inflate(R.layout.date_item, null));
  }

  @Override
  public void onBindViewHolder(RecyclerView.ViewHolder holder, int position) {
    MyViewHolder myholder = (MyViewHolder) holder;
    myholder.setData(position);
  }

  @Override
  public int getItemCount() {
    return comingslist.size();
  }

  class MyViewHolder extends RecyclerView.ViewHolder {
    private TextView mv_name;
    private TextView mv_dec;
    private TextView mv_date;
    private ImageView imageView;

    public MyViewHolder(View itemView) {
      super(itemView);
      mv_name = (TextView) itemView.findViewById(R.id.mv_name);
      mv_dec = (TextView) itemView.findViewById(R.id.mv_dec);
      mv_date = (TextView) itemView.findViewById(R.id.mv_date);
      imageView = (ImageView) itemView.findViewById(R.id.image);
    }

    public void setData(int position) {
      WaitMVBean.DataBean.ComingBean coming = comingslist.get(position);

      String name = coming.getNm();
      mv_name.setText(name);

      String date = coming.getShowInfo();
      mv_date.setText(date);

      String dec = coming.getScm();
      mv_dec.setText(dec);

      //注:當你發下圖片無法打開是,做個字符串替換即可
      String imagUrl = coming.getImg();
      String newImagUrl = imagUrl.replaceAll("w.h", "50.80");

      //使用Glide加載圖片
      Glide.with(mContext)
          .load(newImagUrl)
          .into(imageView);
    }
  }
}

item的布局:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:background="#ffffff"
  android:gravity="center_vertical"
  android:orientation="horizontal">

  <ImageView
    android:id="@+id/image"
    android:layout_width="70dp"
    android:layout_height="110dp"
    android:layout_marginBottom="5dp"
    android:layout_marginLeft="10dp"
    android:layout_marginRight="8dp"
    android:layout_marginTop="5dp" />

  <LinearLayout
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:layout_marginLeft="6dp"
    android:layout_weight="1"
    android:orientation="vertical">

    <TextView
      android:id="@+id/mv_name"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:text="神奇動物在哪裏"
      android:textColor="#000000"
      android:textSize="15sp" />

    <LinearLayout
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:orientation="horizontal">

      <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="觀眾"
        android:textColor="#55000000"
        android:textSize="14sp" />

      <TextView
        android:id="@+id/tv_people"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="9.0 "
        android:textColor="#FFCE42"
        android:textSize="18sp" />

      <TextView
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text=" | 專業"
        android:textColor="#55000000"
        android:textSize="14sp" />

      <TextView
        android:id="@+id/tv_professional"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="6.7"
        android:textColor="#FFCE42"
        android:textSize="18sp" />
    </LinearLayout>

    <TextView
      android:id="@+id/mv_dec"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_marginTop="8dp"
      android:text="神奇動物城,法師顯超能"
      android:textColor="#99000000"
      android:textSize="11sp" />

    <TextView
      android:id="@+id/mv_date"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_marginTop="10dp"
      android:text="今天165家影院放映2088場"
      android:textColor="#99000000"
      android:textSize="11sp" />
  </LinearLayout>

</LinearLayout>

第五步:一定不能忘!!!

recycleView不僅要設置適配器還要設置布局管理者,否則圖片不顯示

GridLayoutManager manager = new GridLayoutManager(this, 1);
      recyclerView.setLayoutManager(manager);

此時RecyclerView簡單的完成效果如下:

20161204141955135

下面開始做 可推動的 懸浮導航欄:

第一步:首先我們來寫一個類,它起標記的作用,來放每一個item的對應的懸浮欄的字符串

public class NameBean {
  String name;

  public String getName() {
    return name;
  }

  public void setName(String name) {
    this.name = name;
  }
}

第二步:自定義一個SectionDecoration 類 繼承 RecyclerView的ItemDecoration

public class SectionDecoration extends RecyclerView.ItemDecoration {
  private static final String TAG = "SectionDecoration";

  private List<NameBean> dataList;

  private DecorationCallback callback;
  private TextPaint textPaint;
  private Paint paint;
  private int topGap;
  private int alignBottom;
  private Paint.FontMetrics fontMetrics;

  public SectionDecoration(List<NameBean> dataList, Context context, DecorationCallback decorationCallback) {
    Resources res = context.getResources();
    this.dataList = dataList;
    this.callback = decorationCallback;
    //設置懸浮欄的畫筆---paint
    paint = new Paint();
    paint.setColor(res.getColor(R.color.colorGray));

    //設置懸浮欄中文本的畫筆
    textPaint = new TextPaint();
    textPaint.setAntiAlias(true);
    textPaint.setTextSize(DensityUtil.dip2px(context, 14));
    textPaint.setColor(Color.DKGRAY);
    textPaint.setTextAlign(Paint.Align.LEFT);
    fontMetrics = new Paint.FontMetrics();
    //決定懸浮欄的高度等
    topGap = res.getDimensionPixelSize(R.dimen.sectioned_top);
    //決定文本的顯示位置等
    alignBottom = res.getDimensionPixelSize(R.dimen.sectioned_alignBottom);
  }

  @Override
  public void getItemOffsets(Rect outRect, View view, RecyclerView parent, RecyclerView.State state) {
    super.getItemOffsets(outRect, view, parent, state);
    int pos = parent.getChildAdapterPosition(view);
    Log.i(TAG, "getItemOffsets:" + pos);
    String groupId = callback.getGroupId(pos);
    if (groupId.equals("-1")) return;
    //只有是同一組的第一個才顯示懸浮欄
    if (pos == 0 || isFirstInGroup(pos)) {
      outRect.top = topGap;
      if (dataList.get(pos).getName() == "") {
        outRect.top = 0;
      }
    } else {
      outRect.top = 0;
    }
  }

  @Override
  public void onDraw(Canvas c, RecyclerView parent, RecyclerView.State state) {
    super.onDraw(c, parent, state);
    int left = parent.getPaddingLeft();
    int right = parent.getWidth() - parent.getPaddingRight();
    int childCount = parent.getChildCount();
    for (int i = 0; i < childCount; i++) {
      View view = parent.getChildAt(i);
      int position = parent.getChildAdapterPosition(view);
      String groupId = callback.getGroupId(position);
      if (groupId.equals("-1")) return;
      String textLine = callback.getGroupFirstLine(position).toUpperCase();
      if (textLine == "") {
        float top = view.getTop();
        float bottom = view.getTop();
        c.drawRect(left, top, right, bottom, paint);
        return;
      } else {
        if (position == 0 || isFirstInGroup(position)) {
          float top = view.getTop() - topGap;
          float bottom = view.getTop();
          //繪制懸浮欄
          c.drawRect(left, top - topGap, right, bottom, paint);
          //繪制文本
          c.drawText(textLine, left, bottom, textPaint);
        }
      }
    }
  }

  @Override
  public void onDrawOver(Canvas c, RecyclerView parent, RecyclerView.State state) {
    super.onDrawOver(c, parent, state);
    int itemCount = state.getItemCount();
    int childCount = parent.getChildCount();
    int left = parent.getPaddingLeft();
    int right = parent.getWidth() - parent.getPaddingRight();
    float lineHeight = textPaint.getTextSize() + fontMetrics.descent;

    String preGroupId = "";
    String groupId = "-1";
    for (int i = 0; i < childCount; i++) {
      View view = parent.getChildAt(i);
      int position = parent.getChildAdapterPosition(view);

      preGroupId = groupId;
      groupId = callback.getGroupId(position);
      if (groupId.equals("-1") || groupId.equals(preGroupId)) continue;

      String textLine = callback.getGroupFirstLine(position).toUpperCase();
      if (TextUtils.isEmpty(textLine)) continue;

      int viewBottom = view.getBottom();
      float textY = Math.max(topGap, view.getTop());
      //下一個和當前不一樣移動當前
      if (position + 1 < itemCount) {
        String nextGroupId = callback.getGroupId(position + 1);
        //組內最後一個view進入了header
        if (nextGroupId != groupId && viewBottom < textY) {
          textY = viewBottom;
        }
      }
      //textY - topGap決定了懸浮欄繪制的高度和位置
      c.drawRect(left, textY - topGap, right, textY, paint);
      //left+2*alignBottom 決定了文本往左偏移的多少(加-->向左移)
      //textY-alignBottom 決定了文本往右偏移的多少 (減-->向上移)
      c.drawText(textLine, left + 2 * alignBottom, textY - alignBottom, textPaint);
    }
  }

  /**
   * 判斷是不是組中的第一個位置
   *
   * @param pos
   * @return
   */
  private boolean isFirstInGroup(int pos) {
    if (pos == 0) {
      return true;
    } else {
      // 因為是根據 字符串內容的相同與否 來判斷是不是同意組的,所以此處的標記id 要是String類型
      // 如果你只是做聯系人列表,懸浮框裡顯示的只是一個字母,則標記id直接用 int 類型就行了
      String prevGroupId = callback.getGroupId(pos - 1);
      String groupId = callback.getGroupId(pos);
      //判斷前一個字符串 與 當前字符串 是否相同
      if (prevGroupId.equals(groupId)) {
        return false;
      } else {
        return true;
      }
    }
  }

  //定義一個借口方便外界的調用
  interface DecorationCallback {
    String getGroupId(int position);

    String getGroupFirstLine(int position);
  }
}

第三步:在向list集合中先把每一個item的 起“標記”作用的字符串都加進去

setPullAction(comingslist);
private void setPullAction(List<WaitMVBean.DataBean.ComingBean> comingslist) {
    dataList = new ArrayList<>();

    for (int i = 0; i < comingslist.size(); i++) {
      NameBean nameBean = new NameBean();
      String name0 = comingslist.get(i).getComingTitle();
      nameBean.setName(name0);
      dataList.add(nameBean);
    }
  }

第四步:在setAdapter() 前,為RecyclerView添加ItemDecoration:

recyclerView.addItemDecoration(new SectionDecoration(dataList,mContext, new SectionDecoration.DecorationCallback() {
        //返回標記id (即每一項對應的標志性的字符串)
        @Override
        public String getGroupId(int position) {
          if(dataList.get(position).getName()!=null) {
            return dataList.get(position).getName();
          }
          return "-1";
        }

        //獲取同組中的第一個內容
        @Override
        public String getGroupFirstLine(int position) {
          if(dataList.get(position).getName()!=null) {
            return dataList.get(position).getName();
          }
          return "";
        }
      }));

這樣就完成了~

再看一眼最終效果感受一下:

20161204135240604

以上就是本文的全部內容,希望對大家的學習有所幫助,也希望大家多多支持本站。

  1. 上一頁:
  2. 下一頁:
熱門文章
閱讀排行版
Copyright © Android教程網 All Rights Reserved
