Android應用中炫酷的橫向和環形進度條的實例分享

編輯:關於Android編程

一、概述
最近需要用進度條,秉著不重復造輪子的原則,上github上搜索了一番,看了幾個覺得比較好看的ProgressBar,比如:daimajia的等。簡單看了下代碼,基本都是繼承自View,徹徹底底的自定義了一個進度條。盯著那絢麗滾動條,忽然覺得,為什麼要通過View去寫一個滾動條,系統已經提供了ProgressBar以及屬於它的特性,我們沒必要重新去構建一個,但是系統的又比較丑,不同版本變現還不一定一樣。那麼得出我們的目標:改變系統ProgressBar的樣子。
對沒錯,我們沒有必要去從0打造一個ProgressBar,人家雖然長的不好看,但是特性以及穩定性還是剛剛的,我們只需要為其整下容就ok了。
接下來,我們貼下效果圖:
1、橫向的進度條

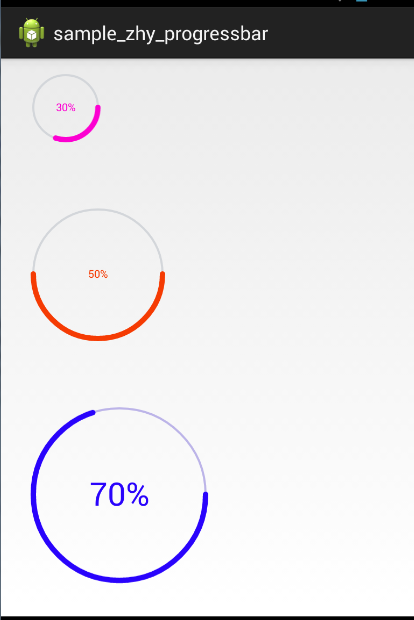

2、圓形的進度條


沒錯,這就是我們的進度條效果,橫向的模仿了daimajia的進度條樣子。不過我們繼承子ProgressBar,簡單的為其整個容,代碼清晰易懂 。為什麼說,易懂呢?
橫向那個進度條,大家會drawLine()和drawText()吧,那麼通過getWidth()拿到控件的寬度,再通過getProgress()拿到進度,按比例控制繪制線的長短,字的位置還不是分分鐘的事。

二、實現
 橫向的滾動條繪制肯定需要一些屬性,比如已/未到達進度的顏色、寬度,文本的顏色、大小等。
 本來呢,我是想通過系統ProgressBar的progressDrawable,從裡面提取一些屬性完成繪制需要的參數的。但是,最終呢,反而讓代碼變得復雜。所以最終還是改用自定義屬性。 說道自定義屬性,大家應該已經不陌生了。
1、HorizontalProgressBarWithNumber
(1)自定義屬性
values/attr_progress_bar.xml:

<?xml version="1.0" encoding="utf-8"?>
<resources>

  <declare-styleable name="HorizontalProgressBarWithNumber">
    <attr name="progress_unreached_color" format="color" />
    <attr name="progress_reached_color" format="color" />
    <attr name="progress_reached_bar_height" format="dimension" />
    <attr name="progress_unreached_bar_height" format="dimension" />
    <attr name="progress_text_size" format="dimension" />
    <attr name="progress_text_color" format="color" />
    <attr name="progress_text_offset" format="dimension" />
    <attr name="progress_text_visibility" format="enum">
      <enum name="visible" value="0" />
      <enum name="invisible" value="1" />
    </attr>
  </declare-styleable>

  <declare-styleable name="RoundProgressBarWidthNumber">
    <attr name="radius" format="dimension" />
  </declare-styleable>

</resources>

(2)構造中獲取

public class HorizontalProgressBarWithNumber extends ProgressBar
{

  private static final int DEFAULT_TEXT_SIZE = 10;
  private static final int DEFAULT_TEXT_COLOR = 0XFFFC00D1;
  private static final int DEFAULT_COLOR_UNREACHED_COLOR = 0xFFd3d6da;
  private static final int DEFAULT_HEIGHT_REACHED_PROGRESS_BAR = 2;
  private static final int DEFAULT_HEIGHT_UNREACHED_PROGRESS_BAR = 2;
  private static final int DEFAULT_SIZE_TEXT_OFFSET = 10;

  /**
   * painter of all drawing things
   */
  protected Paint mPaint = new Paint();
  /**
   * color of progress number
   */
  protected int mTextColor = DEFAULT_TEXT_COLOR;
  /**
   * size of text (sp)
   */
  protected int mTextSize = sp2px(DEFAULT_TEXT_SIZE);

  /**
   * offset of draw progress
   */
  protected int mTextOffset = dp2px(DEFAULT_SIZE_TEXT_OFFSET);

  /**
   * height of reached progress bar
   */
  protected int mReachedProgressBarHeight = dp2px(DEFAULT_HEIGHT_REACHED_PROGRESS_BAR);

  /**
   * color of reached bar
   */
  protected int mReachedBarColor = DEFAULT_TEXT_COLOR;
  /**
   * color of unreached bar
   */
  protected int mUnReachedBarColor = DEFAULT_COLOR_UNREACHED_COLOR;
  /**
   * height of unreached progress bar
   */
  protected int mUnReachedProgressBarHeight = dp2px(DEFAULT_HEIGHT_UNREACHED_PROGRESS_BAR);
  /**
   * view width except padding
   */
  protected int mRealWidth;

  protected boolean mIfDrawText = true;

  protected static final int VISIBLE = 0;

  public HorizontalProgressBarWithNumber(Context context, AttributeSet attrs)
  {
    this(context, attrs, 0);
  }

  public HorizontalProgressBarWithNumber(Context context, AttributeSet attrs,
      int defStyle)
  {
    super(context, attrs, defStyle);

    setHorizontalScrollBarEnabled(true);

    obtainStyledAttributes(attrs);

    mPaint.setTextSize(mTextSize);
    mPaint.setColor(mTextColor);

  }

  /**
   * get the styled attributes
   *
   * @param attrs
   */
  private void obtainStyledAttributes(AttributeSet attrs)
  {
    // init values from custom attributes
    final TypedArray attributes = getContext().obtainStyledAttributes(
        attrs, R.styleable.HorizontalProgressBarWithNumber);

    mTextColor = attributes
        .getColor(
            R.styleable.HorizontalProgressBarWithNumber_progress_text_color,
            DEFAULT_TEXT_COLOR);
    mTextSize = (int) attributes.getDimension(
        R.styleable.HorizontalProgressBarWithNumber_progress_text_size,
        mTextSize);

    mReachedBarColor = attributes
        .getColor(
            R.styleable.HorizontalProgressBarWithNumber_progress_reached_color,
            mTextColor);
    mUnReachedBarColor = attributes
        .getColor(
            R.styleable.HorizontalProgressBarWithNumber_progress_unreached_color,
            DEFAULT_COLOR_UNREACHED_COLOR);
    mReachedProgressBarHeight = (int) attributes
        .getDimension(
            R.styleable.HorizontalProgressBarWithNumber_progress_reached_bar_height,
            mReachedProgressBarHeight);
    mUnReachedProgressBarHeight = (int) attributes
        .getDimension(
            R.styleable.HorizontalProgressBarWithNumber_progress_unreached_bar_height,
            mUnReachedProgressBarHeight);
    mTextOffset = (int) attributes
        .getDimension(
            R.styleable.HorizontalProgressBarWithNumber_progress_text_offset,
            mTextOffset);

    int textVisible = attributes
        .getInt(R.styleable.HorizontalProgressBarWithNumber_progress_text_visibility,
            VISIBLE);
    if (textVisible != VISIBLE)
    {
      mIfDrawText = false;
    }
    attributes.recycle();
  }

嗯,看起來代碼挺長,其實都是在獲取自定義屬性,沒什麼技術含量。

(3)onMeasure
剛才不是出onDraw裡面寫寫就行了麼,為什麼要改onMeasure呢,主要是因為我們所有的屬性比如進度條寬度讓用戶自定義了,所以我們的測量也得稍微變下。

@Override
protected synchronized void onMeasure(int widthMeasureSpec,
    int heightMeasureSpec)
{
  int heightMode = MeasureSpec.getMode(heightMeasureSpec);

  if (heightMode != MeasureSpec.EXACTLY)
  {

    float textHeight = (mPaint.descent() + mPaint.ascent());
    int exceptHeight = (int) (getPaddingTop() + getPaddingBottom() + Math
        .max(Math.max(mReachedProgressBarHeight,
            mUnReachedProgressBarHeight), Math.abs(textHeight)));

    heightMeasureSpec = MeasureSpec.makeMeasureSpec(exceptHeight,
        MeasureSpec.EXACTLY);
  }
  super.onMeasure(widthMeasureSpec, heightMeasureSpec);

}

寬度我們不變,所以的自定義屬性不涉及寬度,高度呢,只考慮不是EXACTLY的情況(用戶明確指定了,我們就不管了),根據padding和進度條寬度算出自己想要的,如果非EXACTLY下,我們進行exceptHeight封裝,傳入給控件進行測量高度。
測量完,就到我們的onDraw了~~~
(4)onDraw

@Override
  protected synchronized void onDraw(Canvas canvas)
  {
    canvas.save();
    //畫筆平移到指定paddingLeft, getHeight() / 2位置,注意以後坐標都為以此為0,0
    canvas.translate(getPaddingLeft(), getHeight() / 2);

    boolean noNeedBg = false;
    //當前進度和總值的比例
    float radio = getProgress() * 1.0f / getMax();
    //已到達的寬度
    float progressPosX = (int) (mRealWidth * radio);
    //繪制的文本
    String text = getProgress() + "%";

    //拿到字體的寬度和高度
    float textWidth = mPaint.measureText(text);
    float textHeight = (mPaint.descent() + mPaint.ascent()) / 2;

    //如果到達最後,則未到達的進度條不需要繪制
    if (progressPosX + textWidth > mRealWidth)
    {
      progressPosX = mRealWidth - textWidth;
      noNeedBg = true;
    }

    // 繪制已到達的進度
    float endX = progressPosX - mTextOffset / 2;
    if (endX > 0)
    {
      mPaint.setColor(mReachedBarColor);
      mPaint.setStrokeWidth(mReachedProgressBarHeight);
      canvas.drawLine(0, 0, endX, 0, mPaint);
    }

    // 繪制文本
    if (mIfDrawText)
    {
      mPaint.setColor(mTextColor);
      canvas.drawText(text, progressPosX, -textHeight, mPaint);
    }

    // 繪制未到達的進度條
    if (!noNeedBg)
    {
      float start = progressPosX + mTextOffset / 2 + textWidth;
      mPaint.setColor(mUnReachedBarColor);
      mPaint.setStrokeWidth(mUnReachedProgressBarHeight);
      canvas.drawLine(start, 0, mRealWidth, 0, mPaint);
    }

    canvas.restore();

  }

  @Override
  protected void onSizeChanged(int w, int h, int oldw, int oldh)
  {
    super.onSizeChanged(w, h, oldw, oldh);
    mRealWidth = w - getPaddingRight() - getPaddingLeft();

  }

其實核心方法就是onDraw了,但是呢,onDraw也很簡單,繪制線、繪制文本、繪制線,結束。

還有兩個簡單的輔助方法:

/**
 * dp 2 px
 *
 * @param dpVal
 */
protected int dp2px(int dpVal)
{
  return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP,
      dpVal, getResources().getDisplayMetrics());
}

/**
 * sp 2 px
 *
 * @param spVal
 * @return
 */
protected int sp2px(int spVal)
{
  return (int) TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_SP,
      spVal, getResources().getDisplayMetrics());

}

好了,到此我們的橫向進度就結束了,是不是很簡單~~如果你是自定義View,你還得考慮progress的更新,考慮狀態的銷毀與恢復等等復雜的東西。
接下來看我們的RoundProgressBarWidthNumber圓形的進度條。

2、RoundProgressBarWidthNumber
圓形的進度條和橫向的進度條基本變量都是一致的,於是我就讓RoundProgressBarWidthNumber extends HorizontalProgressBarWithNumber 了。
然後需要改變的就是測量和onDraw了:
完整代碼:

package com.zhy.view;

import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Paint.Cap;
import android.graphics.Paint.Style;
import android.graphics.RectF;
import android.util.AttributeSet;

import com.zhy.library.view.R;

public class RoundProgressBarWidthNumber extends
    HorizontalProgressBarWithNumber {
  /**
   * mRadius of view
   */
  private int mRadius = dp2px(30);

  public RoundProgressBarWidthNumber(Context context) {
    this(context, null);
  }

  public RoundProgressBarWidthNumber(Context context, AttributeSet attrs) {
    super(context, attrs);

    mReachedProgressBarHeight = (int) (mUnReachedProgressBarHeight * 2.5f);
    TypedArray ta = context.obtainStyledAttributes(attrs,
        R.styleable.RoundProgressBarWidthNumber);
    mRadius = (int) ta.getDimension(
        R.styleable.RoundProgressBarWidthNumber_radius, mRadius);
    ta.recycle();

    mTextSize = sp2px(14);

    mPaint.setStyle(Style.STROKE);
    mPaint.setAntiAlias(true);
    mPaint.setDither(true);
    mPaint.setStrokeCap(Cap.ROUND);

  }

  @Override
  protected synchronized void onMeasure(int widthMeasureSpec,
      int heightMeasureSpec) {
    int heightMode = MeasureSpec.getMode(heightMeasureSpec);
    int widthMode = MeasureSpec.getMode(widthMeasureSpec);

    int paintWidth = Math.max(mReachedProgressBarHeight,
        mUnReachedProgressBarHeight);

    if (heightMode != MeasureSpec.EXACTLY) {

      int exceptHeight = (int) (getPaddingTop() + getPaddingBottom()
          + mRadius * 2 + paintWidth);
      heightMeasureSpec = MeasureSpec.makeMeasureSpec(exceptHeight,
          MeasureSpec.EXACTLY);
    }
    if (widthMode != MeasureSpec.EXACTLY) {
      int exceptWidth = (int) (getPaddingLeft() + getPaddingRight()
          + mRadius * 2 + paintWidth);
      widthMeasureSpec = MeasureSpec.makeMeasureSpec(exceptWidth,
          MeasureSpec.EXACTLY);
    }

    super.onMeasure(heightMeasureSpec, heightMeasureSpec);

  }

  @Override
  protected synchronized void onDraw(Canvas canvas) {

    String text = getProgress() + "%";
    // mPaint.getTextBounds(text, 0, text.length(), mTextBound);
    float textWidth = mPaint.measureText(text);
    float textHeight = (mPaint.descent() + mPaint.ascent()) / 2;

    canvas.save();
    canvas.translate(getPaddingLeft(), getPaddingTop());
    mPaint.setStyle(Style.STROKE);
    // draw unreaded bar
    mPaint.setColor(mUnReachedBarColor);
    mPaint.setStrokeWidth(mUnReachedProgressBarHeight);
    canvas.drawCircle(mRadius, mRadius, mRadius, mPaint);
    // draw reached bar
    mPaint.setColor(mReachedBarColor);
    mPaint.setStrokeWidth(mReachedProgressBarHeight);
    float sweepAngle = getProgress() * 1.0f / getMax() * 360;
    canvas.drawArc(new RectF(0, 0, mRadius * 2, mRadius * 2), 0,
        sweepAngle, false, mPaint);
    // draw text
    mPaint.setStyle(Style.FILL);
    canvas.drawText(text, mRadius - textWidth / 2, mRadius - textHeight,
        mPaint);

    canvas.restore();

  }

}

首先獲取它的專有屬性mRadius,然後根據此屬性去測量,測量完成繪制;
繪制的過程呢?
先繪制一個細一點的圓,然後繪制一個粗一點的弧度,二者疊在一起就行。文本呢,繪制在中間~~~總體,沒什麼代碼量。
好了,兩個進度條就到這了,是不是發現簡單很多。總體設計上,存在些問題,如果抽取一個BaseProgressBar用於獲取公共的屬性;然後不同樣子的進度條繼承分別實現自己的測量和樣子,這樣結構可能會清晰些~~~

三、使用
布局文件

<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  xmlns:zhy="http://schemas.android.com/apk/res-auto"
  android:layout_width="match_parent"
  android:layout_height="match_parent" >

  <LinearLayout
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:padding="25dp" >

    <com.zhy.view.HorizontalProgressBarWithNumber
      android:id="@+id/id_progressbar01"
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_marginTop="50dip"
      android:padding="5dp" />



    <com.zhy.view.HorizontalProgressBarWithNumber
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_marginTop="50dip"
      android:padding="5dp"
      android:progress="50"
      zhy:progress_text_color="#ffF53B03"
      zhy:progress_unreached_color="#ffF7C6B7" />

    <com.zhy.view.RoundProgressBarWidthNumber
      android:id="@+id/id_progress02"
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_marginTop="50dip"
      android:padding="5dp"
      android:progress="30" />

    <com.zhy.view.RoundProgressBarWidthNumber
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_marginTop="50dip"
      android:padding="5dp"
      android:progress="50"
      zhy:progress_reached_bar_height="20dp"
      zhy:progress_text_color="#ffF53B03"
      zhy:radius="60dp" />

  </LinearLayout>

</ScrollView>

MainActivity

package com.zhy.sample.progressbar;

import android.app.Activity;
import android.os.Bundle;
import android.os.Handler;

import com.zhy.annotation.Log;
import com.zhy.view.HorizontalProgressBarWithNumber;

public class MainActivity extends Activity {

  private HorizontalProgressBarWithNumber mProgressBar;
  private static final int MSG_PROGRESS_UPDATE = 0x110;

  private Handler mHandler = new Handler() {
    @Log
    public void handleMessage(android.os.Message msg) {
      int progress = mProgressBar.getProgress();
      mProgressBar.setProgress(++progress);
      if (progress >= 100) {
        mHandler.removeMessages(MSG_PROGRESS_UPDATE);

      }
      mHandler.sendEmptyMessageDelayed(MSG_PROGRESS_UPDATE, 100);
    };
  };

  @Log
  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);
    mProgressBar = (HorizontalProgressBarWithNumber) findViewById(R.id.id_progressbar01);
    mHandler.sendEmptyMessage(MSG_PROGRESS_UPDATE);

  }

}

  1. 上一頁:
  2. 下一頁:
熱門文章
閱讀排行版
Copyright © Android教程網 All Rights Reserved
