Android傳遞Bitmap對象在兩個Activity之間

編輯:關於Android編程

通過內部存儲方式實現了在兩個Activity之間傳遞Bitmap對象以及其它支持串行化的Java對象,關鍵點有如下:

1.  HTTP客戶端下載圖片,通過ImageView對象顯示

2.  把ImageView上的Bitmap對象從當前Activity傳遞到另外一個Activity中並顯示出來

3.  基於串行化傳遞Java對象數據

首先看我是怎麼實現HTTP客戶端下載圖片,通過異步Task接口實現HTTP客戶端下載圖片並通過Handler來更新ImageView,代碼如下:

package com.example.sharedemo;

import java.io.IOException;
import java.io.InputStream;

import org.apache.http.HttpEntity;
import org.apache.http.HttpResponse;
import org.apache.http.HttpStatus;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.impl.client.DefaultHttpClient;

import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.AsyncTask;
import android.os.Handler;
import android.os.Message;
import android.util.Log;

public class ImageLoadTask extends AsyncTask<String, Void, Bitmap> {
  private Handler handler;

  public ImageLoadTask(Handler handler) {
    this.handler = handler;
  }

  protected void onPostExecute(Bitmap bitmap) {
    Message msg = new Message();
    msg.obj = bitmap;
    handler.sendMessage(msg);
  }

  @Override
  protected Bitmap doInBackground(String... urls) {
    Bitmap bitmap = null;
    // create HTTP client
    HttpClient httpclient = new DefaultHttpClient();
    try {
      // GET request
      Log.i("image-url", urls[0]);
      HttpGet httpRequest = new HttpGet(urls[0]);
      HttpResponse httpResponse = httpclient.execute(httpRequest);
      if (httpResponse.getStatusLine().getStatusCode() == HttpStatus.SC_OK) {
        // get entity from response
        HttpEntity httpEntity = httpResponse.getEntity();
        // read stream
        InputStream is = httpEntity.getContent();
        bitmap = BitmapFactory.decodeStream(is);
        is.close();
        Log.i("image", "already get the image by url : " + urls[0]);
      }

    } catch (ClientProtocolException e) {
      e.printStackTrace();
    } catch (IOException e) {
      e.printStackTrace();
    } finally {
      httpclient.getConnectionManager().shutdown();
    }
    return bitmap;
  }

}

在當前的Activity中通過按鈕上的事件響應實現切換View到對應的Activity中去,同時實現Java串行化數據傳遞。MainActivity的代碼如下:

package com.example.sharedemo;

import java.io.ByteArrayOutputStream;
import java.io.FileOutputStream;

import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.graphics.Bitmap;
import android.graphics.Matrix;
import android.graphics.drawable.BitmapDrawable;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.util.Log;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.ImageView;

public class MainActivity extends Activity implements OnClickListener{
  public final static String SHARE_BITMAP_COMMAND = "share-image";
  public final static String SHARE_TEXT_DATA_COMMAND = "share-text-data";
  private Handler handler;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);
    setupOnClickListener();
  }

  private void setupOnClickListener() {
    Button bitmapBtn = (Button)this.findViewById(R.id.bitmapShareBtn);
    bitmapBtn.setTag(SHARE_BITMAP_COMMAND);
    bitmapBtn.setOnClickListener(this);
    Button textDataBtn = (Button)this.findViewById(R.id.mapShareBtn);
    textDataBtn.setTag(SHARE_TEXT_DATA_COMMAND);
    textDataBtn.setOnClickListener(this);
    final ImageView imageView = (ImageView)this.findViewById(R.id.imageView1);

    handler = new Handler()
    {
      public void handleMessage(Message msg) {
        Bitmap bitmap = (Bitmap)msg.obj;
        if(bitmap != null)
        {
          /*
          // 為防止原始圖片過大導致內存溢出,這裡先縮小原圖顯示,然後釋放原始Bitmap占用的內存
          Bitmap smallBitmap = zoomBitmap(bitmap, bitmap.getWidth()/ 5, bitmap.getHeight() / 5);
          // 釋放資源
          bitmap.recycle();
          // 顯示圖片
          imageView.setImageBitmap(smallBitmap);
          imageView.invalidate();
          */
          imageView.setImageBitmap(bitmap);
        }
      }
    };
    ImageLoadTask task = new ImageLoadTask(handler);
    task.execute("http://img.blog.csdn.net/20150607143208238");
  }

  public static Bitmap zoomBitmap(Bitmap bitmap, int width, int height) {
    int w = bitmap.getWidth();
    int h = bitmap.getHeight();
    Matrix matrix = new Matrix();
    float scaleWidth = ((float) width / w);
    float scaleHeight = ((float) height / h);
    matrix.postScale(scaleWidth, scaleHeight); // 不改變原來圖像大小
    Bitmap newbmp = Bitmap.createBitmap(bitmap, 0, 0, w, h, matrix, true);
    return newbmp;
  }

  @Override
  public void onClick(View v) {
    Object tag = v.getTag();
    Log.i("command", tag.toString());
    if(SHARE_BITMAP_COMMAND.equals(tag))
    {
      Intent intent = new Intent(this.getApplicationContext(), ImageProcessActivity.class);
      ImageView imageView = (ImageView)this.findViewById(R.id.imageView1);
      Bitmap bitmap = ((BitmapDrawable)imageView.getDrawable()).getBitmap();
      intent.putExtra("selectedImage", bitmap);
      intent.putExtra("name", "lena");
      intent.putExtra("description", "超級大美女");
      this.startActivity(intent);
    }
    else if(SHARE_TEXT_DATA_COMMAND.equals(tag))
    {
      Intent intent = new Intent(this.getApplicationContext(), ImageProcessActivity.class);
      ImageView imageView = (ImageView)this.findViewById(R.id.imageView1);
      Bitmap bitmap = ((BitmapDrawable)imageView.getDrawable()).getBitmap();
      // save it first then pass URI
      ImageInfoBean dto = new ImageInfoBean();
      String uri = createImageFromBitmap(bitmap);
      dto.setDescription("超級大美女");
      dto.setName("lena");
      dto.setUri(uri);

      intent.putExtra("tiger", dto);
      this.startActivity(intent);
    }
  }

  public String createImageFromBitmap(Bitmap bitmap) {
    String fileName = "myImage";
    try {
      ByteArrayOutputStream bytes = new ByteArrayOutputStream();
      bitmap.compress(Bitmap.CompressFormat.JPEG, 100, bytes);
      FileOutputStream fo = openFileOutput(fileName, Context.MODE_PRIVATE);
      fo.write(bytes.toByteArray());
      fo.close();
    } catch (Exception e) {
      e.printStackTrace();
      fileName = null;
    }
    Log.i("fileName", fileName);
    return fileName;
  }
}

對應另外一個Activity中實現讀取與組裝Bitmap對象顯示的代碼如下:

package com.example.sharedemo;

import java.io.FileNotFoundException;

import android.app.Activity;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.os.Bundle;
import android.widget.ImageView;
import android.widget.TextView;

public class ImageProcessActivity extends Activity {

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.share_info);
    backFillData();
  }

  private void backFillData() {
    Object obj = this.getIntent().getExtras().get("tiger");
    ImageView imageView = (ImageView)this.findViewById(R.id.imageView1);
    TextView text1 = (TextView)this.findViewById(R.id.textView1);
    TextView text2 = (TextView)this.findViewById(R.id.textView2);
    try {
      if(obj != null && obj instanceof ImageInfoBean)
      {
        ImageInfoBean dto = (ImageInfoBean)obj;
        Bitmap bitmap = BitmapFactory.decodeStream(this.openFileInput(dto.getUri()));
        imageView.setImageBitmap(bitmap);
        imageView.invalidate(); // refresh

        text1.setText("名稱: " + dto.getName());
        text2.setText("描述: " + dto.getDescription());
        return;
      }
    } catch (FileNotFoundException e) {
      e.printStackTrace();
    }

    Bitmap bitmap = (Bitmap) this.getIntent().getParcelableExtra("selectedImage");
    String name = this.getIntent().getExtras().getString("name");
    String description = this.getIntent().getExtras().getString("description");
    if(bitmap != null)
    {
      imageView.setImageBitmap(bitmap);
      imageView.invalidate(); // refresh
    }
    if(name != null)
    {
      text1.setText("名稱: " + name);
    }
    if(description != null)
    {
      text2.setText("描述: " + description);
    }
  }

}

對應的Java串行化對象類代碼如下:

package com.example.sharedemo;

import java.io.Serializable;

public class ImageInfoBean implements Serializable {
  /**
   *
   */
  private static final long serialVersionUID = 1L;

  public String getName() {
    return name;
  }

  public void setName(String name) {
    this.name = name;
  }

  public String getDescription() {
    return description;
  }

  public void setDescription(String description) {
    this.description = description;
  }

  public String getUri() {
    return uri;
  }

  public void setUri(String uri) {
    this.uri = uri;
  }

  private String name;
  private String description;
  private String uri;

}

最後聲明:
別忘記在Manifest文件添加網絡訪問的權限

<uses-permission android:name="android.permission.INTERNET"/>

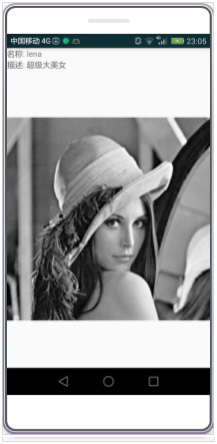

第一個按鈕【傳遞圖片】將會演示我遇到錯誤,第二按鈕【傳遞文本數據】
將會演示正確的處理結果,顯示如下:

以上就是本文的全部內容,希望對大家的學習有所幫助。
