編輯:關於Android編程
在開發過程中,與用戶交互式免不了會用到對話框以實現更好的用戶體驗,所以掌握幾種對話框的實現方法還是非常有必要的。在看具體實例之前先對AlertDialog做一個簡單介紹。AlertDialog是功能最豐富、實踐應用最廣的對話框,它可以生成各種內容的對話框。但實際上AlertDialog生成的對話框總體可分為以下4個區域:圖標區、標題區、內容區、按鈕區。
這裡總結了九種對話框的實現方法,有需要的朋友可以來學習下了
除了popupwindow實現稍微麻煩一點,其他形似都相對簡單,熟悉2便即可
直接上源碼
package com.naoh.stu; import java.util.ArrayList; import android.app.Activity; import android.app.AlertDialog; import android.app.ProgressDialog; import android.content.DialogInterface; import android.graphics.drawable.BitmapDrawable; import android.os.Bundle; import android.view.Gravity; import android.view.LayoutInflater; import android.view.View; import android.view.View.OnClickListener; import android.view.ViewGroup.LayoutParams; import android.view.WindowManager; import android.widget.Button; import android.widget.EditText; import android.widget.PopupWindow; import android.widget.Toast; public class DiaAllActivity extends Activity implements Runnable { private Button btn_diaNormal; private Button btn_diaMulti; private Button btn_diaList; private Button btn_diaSinChos; private Button btn_diaMultiChos; private Button btn_diaProcess; private Button btn_diaReadProcess; private Button btn_diaCustom; private Button btn_popUpDia; private PopupWindow window=null; private Button cusPopupBtn1; private View popupView; @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.dialog); getView(); setListener(); } private void getView() { btn_diaNormal=(Button)findViewById(R.id.btn_diaNormal); btn_diaMulti=(Button)findViewById(R.id.btn_diaMulti); btn_diaList=(Button)findViewById(R.id.btn_diaList); btn_diaSinChos=(Button)findViewById(R.id.btn_diaSigChos); btn_diaMultiChos=(Button)findViewById(R.id.btn_diaMultiChos); btn_diaProcess=(Button)findViewById(R.id.btn_diaProcess); btn_diaReadProcess=(Button)findViewById(R.id.btn_diaReadProcess); btn_diaCustom=(Button)findViewById(R.id.btn_diaCustom); btn_popUpDia=(Button)findViewById(R.id.btn_popUpDia); } private void setListener() { btn_diaNormal.setOnClickListener(btnListener); btn_diaMulti.setOnClickListener(btnListener); btn_diaList.setOnClickListener(btnListener); btn_diaSinChos.setOnClickListener(btnListener); btn_diaMultiChos.setOnClickListener(btnListener); btn_diaProcess.setOnClickListener(btnListener); btn_diaReadProcess.setOnClickListener(btnListener); btn_diaCustom.setOnClickListener(btnListener); btn_popUpDia.setOnClickListener(btnListener); } private Button.OnClickListener btnListener= new Button.OnClickListener() { public void onClick(View v) { if(v instanceof Button) { int btnId=v.getId(); switch(btnId) { case R.id.btn_diaNormal: showNormalDia(); break; case R.id.btn_diaMulti: showMultiDia(); break; case R.id.btn_diaList: showListDia(); break; case R.id.btn_diaSigChos: showSinChosDia(); break; case R.id.btn_diaMultiChos: showMultiChosDia(); break; case R.id.btn_diaReadProcess: showReadProcess(); break; case R.id.btn_diaProcess: showProcessDia(); break; case R.id.btn_diaCustom: showCustomDia(); break; case R.id.btn_popUpDia: showCusPopUp(v); break; default: break; } } } }; /*普通的對話框*/ private void showNormalDia() { //AlertDialog.Builder normalDialog=new AlertDialog.Builder(getApplicationContext()); AlertDialog.Builder normalDia=new AlertDialog.Builder(DiaAllActivity.this); normalDia.setIcon(R.drawable.ic_launcher); normalDia.setTitle("普通的對話框"); normalDia.setMessage("普通對話框的message內容"); normalDia.setPositiveButton("確定", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub showClickMessage("確定"); } }); normalDia.setNegativeButton("取消", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub showClickMessage("取消"); } }); normalDia.create().show(); } /*多按鈕對話框*/ private void showMultiDia() { AlertDialog.Builder multiDia=new AlertDialog.Builder(DiaAllActivity.this); multiDia.setTitle("多選項對話框"); multiDia.setPositiveButton("按鈕一", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub showClickMessage("按鈕一"); } }); multiDia.setNeutralButton("按鈕二", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub showClickMessage("按鈕二"); } }); multiDia.setNegativeButton("按鈕三", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub showClickMessage("按鈕三"); } }); multiDia.create().show(); } /*列表對話框*/ private void showListDia() { final String[] mList={"選項1","選項2","選項3","選項4","選項5","選項6","選項7"}; AlertDialog.Builder listDia=new AlertDialog.Builder(DiaAllActivity.this); listDia.setTitle("列表對話框"); listDia.setItems(mList, new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub /*下標是從0開始的*/ showClickMessage(mList[which]); } }); listDia.create().show(); } /*單項選擇對話框*/ int yourChose=-1; private void showSinChosDia() { final String[] mList={"選項1","選項2","選項3","選項4","選項5","選項6","選項7"}; yourChose=-1; AlertDialog.Builder sinChosDia=new AlertDialog.Builder(DiaAllActivity.this); sinChosDia.setTitle("單項選擇對話框"); sinChosDia.setSingleChoiceItems(mList, 0, new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub yourChose=which; } }); sinChosDia.setPositiveButton("確定", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub if(yourChose!=-1) { showClickMessage(mList[yourChose]); } } }); sinChosDia.create().show(); } ArrayList<Integer> myChose= new ArrayList<Integer>(); private void showMultiChosDia() { final String[] mList={"選項1","選項2","選項3","選項4","選項5","選項6","選項7"}; final boolean mChoseSts[]={false,false,false,false,false,false,false}; myChose.clear(); AlertDialog.Builder multiChosDia=new AlertDialog.Builder(DiaAllActivity.this); multiChosDia.setTitle("多項選擇對話框"); multiChosDia.setMultiChoiceItems(mList, mChoseSts, new DialogInterface.OnMultiChoiceClickListener() { @Override public void onClick(DialogInterface dialog, int which, boolean isChecked) { // TODO Auto-generated method stub if(isChecked) { myChose.add(which); } else { myChose.remove(which); } } }); multiChosDia.setPositiveButton("確定", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub int size=myChose.size(); String str=""; for(int i=0;i<size;i++) { str+=mList[myChose.get(i)]; } showClickMessage(str); } }); multiChosDia.create().show(); } //進度讀取框需要模擬讀取 ProgressDialog mReadProcessDia=null; public final static int MAX_READPROCESS = 100; private void showReadProcess() { mReadProcessDia=new ProgressDialog(DiaAllActivity.this); mReadProcessDia.setProgress(0); mReadProcessDia.setTitle("進度條窗口"); mReadProcessDia.setProgressStyle(ProgressDialog.STYLE_HORIZONTAL); mReadProcessDia.setMax(MAX_READPROCESS); mReadProcessDia.show(); new Thread(this).start(); } //新開啟一個線程,循環的累加,一直到100然後在停止 @Override public void run() { int Progress= 0; while(Progress < MAX_READPROCESS) { try { Thread.sleep(100); Progress++; mReadProcessDia.incrementProgressBy(1); } catch (InterruptedException e) { // TODO Auto-generated catch block e.printStackTrace(); } } //讀取完了以後窗口自消失 mReadProcessDia.cancel(); } /*讀取中的對話框*/ private void showProcessDia() { ProgressDialog processDia= new ProgressDialog(DiaAllActivity.this); processDia.setTitle("進度條框"); processDia.setMessage("內容讀取中..."); processDia.setIndeterminate(true); processDia.setCancelable(true); processDia.show(); } /*自定義對話框*/ private void showCustomDia() { AlertDialog.Builder customDia=new AlertDialog.Builder(DiaAllActivity.this); final View viewDia=LayoutInflater.from(DiaAllActivity.this).inflate(R.layout.custom_dialog, null); customDia.setTitle("自定義對話框"); customDia.setView(viewDia); customDia.setPositiveButton("確定", new DialogInterface.OnClickListener() { @Override public void onClick(DialogInterface dialog, int which) { // TODO Auto-generated method stub EditText diaInput=(EditText) viewDia.findViewById(R.id.txt_cusDiaInput); showClickMessage(diaInput.getText().toString()); } }); customDia.create().show(); } /*popup window 來實現*/ private void showCusPopUp(View parent) { if(window == null) { popupView=LayoutInflater.from(DiaAllActivity.this).inflate(R.layout.dia_cuspopup_dia, null); cusPopupBtn1=(Button)popupView.findViewById(R.id.diaCusPopupSure); window =new PopupWindow(popupView,LayoutParams.FILL_PARENT,LayoutParams.FILL_PARENT); } window.setAnimationStyle(R.style.PopupAnimation); /*必須調用setBackgroundDrawable, 因為popupwindow在初始時,會檢測background是否為null,如果是onTouch or onKey events就不會相應,所以必須設置background*/ /*網上也有很多人說,彈出pop之後,不響應鍵盤事件了,這個其實是焦點在pop裡面的view去了。*/ window.setFocusable(true); window.setBackgroundDrawable(new BitmapDrawable()); window.update(); window.showAtLocation(parent, Gravity.CENTER_VERTICAL, 0, 0); cusPopupBtn1.setOnClickListener(new OnClickListener() { @Override public void onClick(View v) { // TODO Auto-generated method stub showClickMessage("popup window的確定"); } }); } /*顯示點擊的內容*/ private void showClickMessage(String message) { Toast.makeText(DiaAllActivity.this, "你選擇的是: "+message, Toast.LENGTH_SHORT).show(); } }

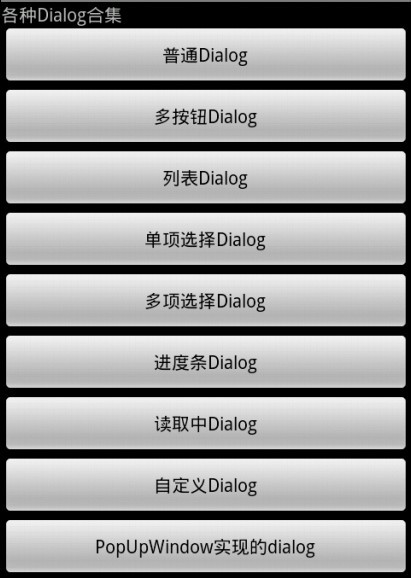

布局,就是一堆的button
<?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="fill_parent" android:layout_height="fill_parent" android:orientation="vertical" > <TextView android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="各種Dialog合集" /> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="普通Dialog" android:id="@+id/btn_diaNormal"/> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="多按鈕Dialog" android:id="@+id/btn_diaMulti"/> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="列表Dialog" android:id="@+id/btn_diaList"/> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="單項選擇Dialog" android:id="@+id/btn_diaSigChos"/> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="多項選擇Dialog" android:id="@+id/btn_diaMultiChos"/> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="進度條Dialog" android:id="@+id/btn_diaReadProcess"/> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="讀取中Dialog" android:id="@+id/btn_diaProcess"/> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="自定義Dialog" android:id="@+id/btn_diaCustom"/> <Button android:layout_width="fill_parent" android:layout_height="wrap_content" android:text="PopUpWindow實現的dialog" android:id="@+id/btn_popUpDia"/> </LinearLayout>
以上是Android開發必知 九種對話框的實現方法,代碼主要用AlertDialog生成的對話框,它的功能豐富、使用最廣。
