android handler詳解

編輯:關於Android編程

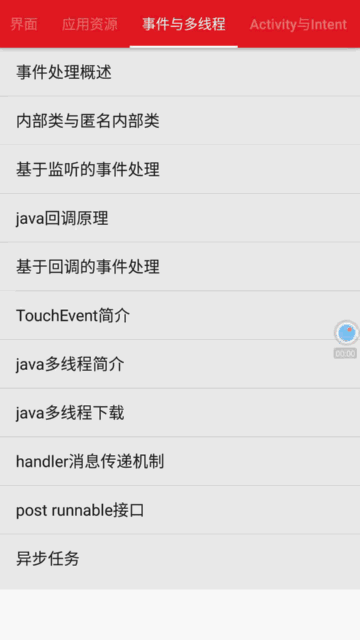

先看演示:

\

一個Handler允許你發送和處理消息(Message)以及與一個線程的消息隊列相關的Runnable對象。每個Handler實例都和單個線程以及該線程的消息隊列有關。當你創建了一個新Handler,它就會和創建它的線程/消息隊列綁定,在那以後,它就會傳遞消息以及runnable對象給消息隊列,然後執行它們。

1為什麼使用Handler

需要使用Handler有兩大主要的原因:

(1)在將來的某個時間點調度處理消息和runnable對象;

(2)將需要執行的操作放到其他線程之中,而不是自己的;

調度處理消息是通過調用post(Runnable), postAtTime(Runnable, long),postDelayed(Runnable, long), sendEmptyMessage(int), sendMessage(Message),sendMessageAtTime(Message, long)和sendMessageDelayed(Message,long)等方法完成的。其中的post版本的方法可以讓你將Runnable對象放進消息隊列;sendMessage版本的方法可以讓你將一個包含有bundle對象的消息對象放進消息隊列,然後交由handleMessage(Message)方法處理。(這個需要你復寫Handler的handleMessage方法)

Handler在實際開發中是很常用的,主要是用來接收子線程發送的數據,然後主線程結合此數據來更新界面UI。

Android應用程序啟動時,他會開啟一個主線程(也就是UI線程),管理界面中的UI控件,進行事件派發,比如說:點擊一個按鈕,Android會分發事件到Button上從而來響應你的操作。但是當你需要執行一個比較耗時的操作的話,例如:進行IO操作,網絡通信等等,若是執行時間超過5s,那麼Android會彈出一個“經典”的ANR無響應對話框,然後提示按“Force quit”或是“Wait”。解決此類問題的方法就是:我們把一些耗時的操作放到子線程中去執行。但因為子線程涉及到UI更新,而Android主線程是線程不安全的,所以更新UI的操作只能放在主線程中執行,若是放在子線程中執行的話很會出問題。所以這時就需要一種機制:主線程可以發送“命令/任務”給子線程執行,然後子線程反饋執行結果;

若在主線程中實例化一個Handler對象,例如:

Handler mHandler =newHandler();

此時它並沒有新派生一個線程來執行此Handler,而是將此Handler附加在主線程上,故此時若你在Handler中執行耗時操作的話,還是會彈出ANR對話框!

2 例子

下面就Handler的使用舉一些例子,加深理解。

2.1、post版本的Handler

public class MainActivity extends Activity

                implements OnClickListener {

    private final static String TAG = "HandlerTest";

    private final static int DELAY_TIME = 1000;

    private Button btnStart;

    private Button btnStop;

    Context mContext = null;

    /** Called when the activity is first created. */

    @Override

    public void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.main);

        mContext = this;



        Log.i(TAG, "Main thread id = " +

                Thread.currentThread().getId());

        btnStart = (Button) findViewById(R.id.btn_start);

        btnStart.setOnClickListener(this);

        btnStop = (Button) findViewById(R.id.btn_stop);

        btnStop.setOnClickListener(this);

    }

    @Override

    public void onClick(View view) {

        switch (view.getId()) {

        case R.id.btn_start:

            mHandler.postDelayed(workRunnable, DELAY_TIME);

            break;

        case R.id.btn_stop:

            mHandler.removeCallbacks(workRunnable);

            break;

        }

    }

    Runnable workRunnable = new Runnable() {

        int counter = 0;



        public void run() {

            if (counter++ < 1) {

                Log.i(TAG, "workRunnable thread id = " +

                        Thread.currentThread().getId());

                mHandler.postDelayed(workRunnable, DELAY_TIME);

            }

        }

    };

    Handler mHandler = new Handler();

}



說明:發現thread id是相同的,這就說明:默認情況下創建的Handler會綁定到主線程上,你不能做太耗時的操作。

2.2 HandlerThread



public class MyThread2 extends Activity {

    private Handler handler = null;

    @Override

    public void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        HandlerThread handlerThread = new HandlerThread("myHandlerThread");

        handlerThread.start();

        handler = new Handler(handlerThread.getLooper());

        handler.post(new MyRunnable());

        System.out.println("Oncreate---The Thread id is :"

                + Thread.currentThread().getId());

        setContentView(R.layout.main);

    }

    private class MyRunnable implements Runnable {

        public void run() {

            System.out.println("Runnable---The Thread is running");

            System.out.println("Runnable---The Thread id is :"

                    + Thread.currentThread().getId());

            try {

                Thread.sleep(6000);

            } catch (InterruptedException e) {

                // TODO Auto-generated catch block

                e.printStackTrace();

            }

        }

    }

}





在這個demo中,用到了HandlerThread,在HandlerThread對象中可以通過getLooper方法獲取一個Looper對象控制句柄,我們可以將其這個Looper對象映射到一個Handler中去來實現一個線程同步機制。於是就有以下結果;

1:控制台的輸出: Oncreate---The Thread id is :1

Runnable---The Threadis running

Runnable---The Threadid is :10

2:程序啟動後,我們立刻看到main.xml中的內容。

這樣就達到了多線程的結果

2.3 sendMessage版本的Handler

這裡介紹幾種模型:

2.3.1 默認的Handler

(消息處理隊列掛在主線程上)

  public class MainActivity extends Activity

                      implements OnClickListener {

        private final static String TAG = "HandlerTest";

        private final static int TASK_BEGIN = 1;

        private final static int TASK_1 = 2;

        private final static int TASK_2 = 3;

        private final static int TASK_END   = 4;

        private Button btnStart = null;

        private Button btnStop = null;

        /** Called when the activity is first created. */

        @Override

        public void onCreate(Bundle savedInstanceState) {

            super.onCreate(savedInstanceState);

            setContentView(R.layout.main);



            btnStart = (Button) findViewById(R.id.btn_start);

            btnStart.setOnClickListener(this);

            btnStop = (Button) findViewById(R.id.btn_stop);

            btnStop.setOnClickListener(this);



            Log.i(TAG, "[M_TID:" + Thread.currentThread().getId() + "]");

        }



        Handler mHandler = new Handler() {

            // 注意:在各個case後面不能做太耗時的操作,否則出現ANR對話框

            @Override

            public void handleMessage(Message msg) {

                switch (msg.what) {

                case TASK_BEGIN:

                    Log.i(TAG, "[H_TID:" +

                        Thread.currentThread().getId() + "] Get TASK_BEGIN");

                    break;



                case TASK_1:

                    Log.i(TAG, "[H_TID:" +

                        Thread.currentThread().getId() + "] Get TASK_1");

                    break;



                case TASK_2:

                    Log.i(TAG, "[H_TID:" +

                        Thread.currentThread().getId() + "] Get TASK_2");

                    break;



                case TASK_END:

                    Log.i(TAG, "[H_TID:" +

                        Thread.currentThread().getId() + "] Get TASK_END");

                    finish();

                    break;

                }

                super.handleMessage(msg);

            }

        };



        public void onClick(View view) {

            switch (view.getId()) {

            case R.id.btn_start:

                // 啟動任務(消息只有標識,立即投遞)

                mHandler.sendEmptyMessage(TASK_BEGIN);

                Log.i(TAG, "Send TASK_BEGIN to handler.");



                // 開始任務1(在mHandler的消息隊列中獲取一個Message對象,避免重復構造)

                Message msg1 = mHandler.obtainMessage(TASK_1);

                msg1.obj = "This is task1";

                mHandler.sendMessage(msg1);

                Log.i(TAG, "Send TASK_1 to handler.");



                // 開啟任務2(和上面類似)

                Message msg2 = Message.obtain();

                msg2.arg1 = 10;

                msg2.arg2 = 20;

                msg2.what = TASK_2;

                mHandler.sendMessage(msg2);

                Log.i(TAG, "Send TASK_2 to handler.");

                break;



            case R.id.btn_stop:

                // 結束任務(空消息體,延時2s投遞)

                mHandler.sendEmptyMessageDelayed(TASK_END, 2000);

                Log.i(TAG, "Send TASK_END to handler.");

                break;

            }

    }

    }

2.3.2消息隊列仍綁定在主線程上

在子線程中發送消息。



 public class MainActivity extends Activity {

        private final static String TAG = "HandlerTest";

        private final static int TASK_BEGIN = 1;

        private final static int TASK_1 = 2;

        private final static int TASK_2 = 3;

        private final static int TASK_END   = 4;

            /** Called when the activity is first created. */

        @Override

        public void onCreate(Bundle savedInstanceState) {

            super.onCreate(savedInstanceState);

            setContentView(R.layout.main);



            Log.i(TAG, "[M_TID:" + Thread.currentThread().getId() + "]" +

                    "This is in main thread.");



            workThread.start();

        }



        Handler mHandler = new Handler() {

            // 注意:在各個case後面不能做太耗時的操作,否則出現ANR對話框

            @Override

            public void handleMessage(Message msg) {

                switch (msg.what) {

                case TASK_BEGIN:

                    Log.i(TAG, "[H_TID:" +

                    Thread.currentThread().getId() + "] Get TASK_BEGIN");

                    break;



                case TASK_1:

                    Log.i(TAG, "[H_TID:" +

                    Thread.currentThread().getId() + "] Get TASK_1");

                    break;



                case TASK_2:

                    Log.i(TAG, "[H_TID:" +

                    Thread.currentThread().getId() + "] Get TASK_2");

                    break;



                case TASK_END:

                    Log.i(TAG, "[H_TID:" +

                    Thread.currentThread().getId() + "] Get TASK_END");

                    finish();

                    break;

                }

                super.handleMessage(msg);

            }

        };



        Thread workThread = new Thread() {

            // 你可以在run方法內做任何耗時的操作,然後將結果以消息形式投遞到主線程的消息隊列中

            @Override

            public void run() {

                // 啟動任務(消息只有標識,立即投遞)

                mHandler.sendEmptyMessage(TASK_BEGIN);

                Log.i(TAG, "[S_TID:" + Thread.currentThread().getId() + "]" +

                        "Send TASK_START to handler.");



                // 開始任務1(在mHandler的消息隊列中獲取一個Message對象,避免重復構造)

                Message msg1 = mHandler.obtainMessage(TASK_1);

                msg1.obj = "This is task1";

                mHandler.sendMessage(msg1);

                Log.i(TAG, "[S_TID:" + Thread.currentThread().getId() + "]" +

                        "Send TASK_1 to handler.");



                // 開啟任務2(和上面類似)

                Message msg2 = Message.obtain();

                msg2.arg1 = 10;

                msg2.arg2 = 20;

                msg2.what = TASK_2;

                mHandler.sendMessage(msg2);

                Log.i(TAG, "[S_TID:" + Thread.currentThread().getId() + "]" +

                        "Send TASK_2 to handler.");



                // 結束任務(空消息體,延時2s投遞)

                mHandler.sendEmptyMessageDelayed(TASK_END, 2000);

                Log.i(TAG, "[S_TID:" + Thread.currentThread().getId() + "]" +

                        "Send TASK_END to handler.");

            }

        };

    }

2.3.3將消息隊列綁定到子線程上,

主線程只管通過Handler往子線程的消息隊列中投遞消息即可。

public class MainActivity extends Activity {

    private final static String TAG = "HandlerTest";

    private final static int TASK_BEGIN = 1;

    private final static int TASK_1 = 2;

    private final static int TASK_2 = 3;

    private final static int TASK_END   = 4;

    private MyHandler mHandler = null;

    /** Called when the activity is first created. */

    @Override

    public void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.main);



        Log.i(TAG, "[M_TID:" + Thread.currentThread().getId() + "]" +

                "This is in main thread.");



        HandlerThread myLooperThread = new HandlerThread("my looper thread");

        myLooperThread.start();



        Looper looper = myLooperThread.getLooper();

        mHandler = new MyHandler(looper);



        // 啟動任務(消息只有標識,立即投遞)

        mHandler.sendEmptyMessage(TASK_BEGIN);

        Log.i(TAG, "[S_ID:" + Thread.currentThread().getId() + "]" +

                "Send TASK_START to handler.");



        // 開始任務1(在mHandler的消息隊列中獲取一個Message對象,避免重復構造)

        Message msg1 = mHandler.obtainMessage(TASK_1);

        msg1.obj = "This is task1";

        mHandler.sendMessage(msg1);

        Log.i(TAG, "[S_ID:" + Thread.currentThread().getId() + "]" +

                "Send TASK_1 to handler.");



        // 開啟任務2(和上面類似)

        Message msg2 = Message.obtain();

        msg2.arg1 = 10;

        msg2.arg2 = 20;

        msg2.what = TASK_2;

        mHandler.sendMessage(msg2);

        Log.i(TAG, "[S_ID:" + Thread.currentThread().getId() + "]" +

                "Send TASK_2 to handler.");



        // 結束任務(空消息體,延時2s投遞)

        mHandler.sendEmptyMessageDelayed(TASK_END, 2000);

        Log.i(TAG, "[S_ID:" + Thread.currentThread().getId() + "]" +

                "Send TASK_END to handler.");

    }



    class MyHandler extends Handler {

        public MyHandler(Looper looper) {

            super(looper);

        }



        // 現在在每個case之後,你可以做任何耗時的操作了

        @Override

        public void handleMessage(Message msg) {

            switch (msg.what) {

            case TASK_BEGIN:

                Log.i(TAG, "[H_TID:" +

                    Thread.currentThread().getId() + "] Get TASK_BEGIN");

                break;



            case TASK_1:

                Log.i(TAG, "[H_TID:" +

                    Thread.currentThread().getId() + "] Get TASK_1");

                break;



            case TASK_2:

                Log.i(TAG, "[H_TID:" +

                    Thread.currentThread().getId() + "] Get TASK_2");

                break;



            case TASK_END:

                Log.i(TAG, "[H_TID:" +

                    Thread.currentThread().getId() + "] Get TASK_END");

                finish();

                break;

            }

            super.handleMessage(msg);

        }

    }

}



3 Demo源碼

package mm.shandong.com.testhandler;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.TextView;

import android.os.Handler;
import android.os.Looper;
import android.os.Message;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.widget.TextView;
import android.widget.Toast;

import java.io.Serializable;
import java.util.HashMap;
import java.util.Map;

public class TestHandlerActivity extends AppCompatActivity {
    TextView textView;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_test_handler);
        textView= (TextView) findViewById(R.id.textView);
    }
    public void createSimpleHandler(View view){
        final Handler handler=new Handler(){
            @Override
            public void handleMessage(Message msg) {
                switch (msg.what){
                    case 1:///一般用16進制表示如0x0001
                        textView.setText(String.valueOf(msg.arg1));
                        break;
                }
            }
        };
        new Thread(){
            @Override
            public void run() {
                int i=0;
                while (i<50){
                    try {
                        Thread.sleep(100);
                        Message msg=new Message();
                        msg.what=1;
                        msg.arg1=i;
                        handler.sendMessage(msg);
                        i++;
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
            }
        }.start();
    }
    public void createSimpleHandler2(View view){
        final Handler handler=new Handler(){
            @Override
            public void handleMessage(Message msg) {
                switch (msg.what){
                    case 0x0002:///一般用16進制表示如0x0001
                        Bundle bundle=msg.getData();
                        Map map= (Map) bundle.get("map");
                        String name= (String) map.get("name");
                        textView.setText(name);
                        break;
                }
            }
        };
        new Thread(){
            @Override
            public void run() {
                int i=0;
                while (i<50){
                    try {
                        Thread.sleep(100);
                        Message msg=new Message();
                        msg.what=0x0002;
                        Bundle bundle=new Bundle();
                        Map map=new HashMap<>();
                        map.put("name","張三"+i);
                        bundle.putSerializable("map", (Serializable) map);
                        msg.setData(bundle);
                        handler.sendMessage(msg);
                        i++;
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
            }
        }.start();
    }
    public  void createSimpleHandler3(View view){
        final Handler handler=new Handler(){
            @Override
            public void handleMessage(Message msg) {
                switch (msg.what){
                    case 1:///一般用16進制表示如0x0001
                        Toast.makeText(TestHandlerActivity.this,"這是一條空消息",Toast.LENGTH_SHORT).show();
                        break;
                }
            }
        };
        handler.sendEmptyMessage(1);
    }
    public  void createSimpleHandler4(View view){
        final Handler handler=new Handler(){
            @Override
            public void handleMessage(Message msg) {
                switch (msg.what){
                    case 1:///一般用16進制表示如0x0001
                        Toast.makeText(TestHandlerActivity.this,"這是延遲發送的一條空消息",Toast.LENGTH_SHORT).show();
                        break;
                }
            }
        };
        handler.sendEmptyMessageDelayed(1,2000);
    }
    public  void createSimpleHandler5(View view){
        final Handler handler=new Handler(){
            @Override
            public void handleMessage(Message msg) {
                switch (msg.what){
                    case 1:///一般用16進制表示如0x0001
                        Toast.makeText(TestHandlerActivity.this,"這是通過obtainMessage從消息池中得到一條消息並發送," +
                                ""+"參數是:"+msg.arg1,Toast.LENGTH_LONG).show();
                        break;
                }
            }
        };
        Message msg=handler.obtainMessage();
        msg.what=1;
        msg.arg1=3;
        handler.sendMessage(msg);
    }
    public  void createSimpleHandler6(View view){
        MThreadNoLooper mThreadNoLooper=new MThreadNoLooper();
        mThreadNoLooper.start();
        if(mThreadNoLooper.handler!=null){
            mThreadNoLooper.handler.sendEmptyMessage(1);
        }
    }
    public  void createSimpleHandler7(View view){
        MThread mThread=new MThread();
        mThread.start();
        try {
            Thread.sleep(100);
            if(mThread.handler!=null){
                mThread.handler.sendEmptyMessage(1);
            }
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

    }
    public class  MThreadNoLooper extends  Thread{
        public Handler handler;
        @Override
        public void run() {
            handler=new Handler(){
                @Override
                public void handleMessage(Message msg) {
                    switch (msg.what){
                        case 1:///一般用16進制表示如0x0001
                            Toast.makeText(TestHandlerActivity.this,"這是子線程中的handler監聽到的消息",Toast.LENGTH_LONG).show();
                            break;
                    }
                }
            };
        }
    }
    public class  MThread extends  Thread{
        public Handler handler;
        @Override
        public void run() {
            Looper.prepare();
            handler=new Handler(){
                @Override
                public void handleMessage(Message msg) {
                    switch (msg.what){
                        case 1:///一般用16進制表示如0x0001
                            Toast.makeText(TestHandlerActivity.this,"這是子線程中的handler監聽到的消息",Toast.LENGTH_LONG).show();
                            break;
                    }
                }
            };
            Looper.loop();
        }
    }
}
  1. 上一頁:
  2. 下一頁:
熱門文章
閱讀排行版
Copyright © Android教程網 All Rights Reserved
