Android 自定義View實現豎直跑馬燈效果

編輯:關於Android編程

首先給出效果圖

\



中間的色塊是因為視頻轉成GIF造成的失真,自動忽略哈。

大家知道,橫向的跑馬燈android自帶的TextView就可以實現,詳情請百度【Android跑馬燈效果】。但是豎直的跑馬燈效果原生Android是不支持的。網上也有很多網友實現了自定義的效果,但是我一貫是不喜歡看別人的代碼,所以這篇博客的思路完全是我自己的想法哈。

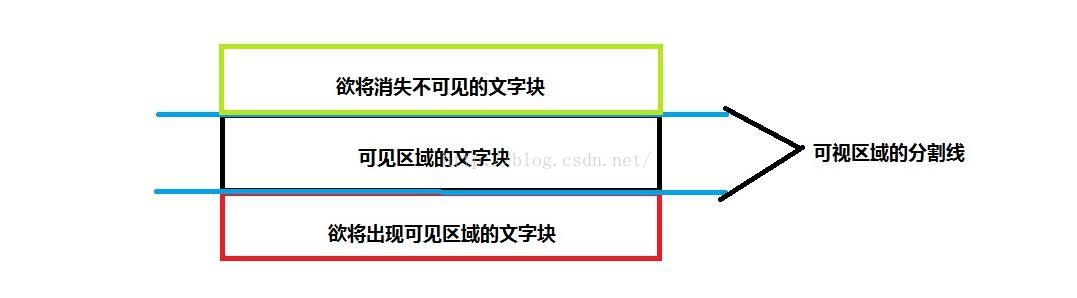

首先,我們需要給自定義的控件梳理一下格局,如下圖所示:

\

1、首先我們將控件分為三個區塊,上面綠色部分為消失不可見的塊,中間黑色部分為可見區域,下面紅色部分為欲出現不可見區域。藍色的線代表的是整個控件的上線和下線。

2、首先我們只給出兩個文字塊在內存中,分別是黑色部分的可見塊和紅色部分的欲出現塊。

3、求出這些塊的寬度、高度與中心點的坐標值。

4、滾動時,動態地改變每個塊的中心點y坐標,使之向上平移。

5、當平移結束後,可見塊位於欲消失的不可見塊,欲出現的可見塊位於可見區域的文字塊。此時將欲消失的文字塊移除List,並重新設置後一個索引的Text和重心坐標值,重新加入List中,刷新。

6、用一個Handler來處理動畫的間隔時間。用屬性動畫ValueAnimator來實現平移的動畫效果。



下面開始代碼講解,首先是用鏈式設置法設置一些常規屬性:



    public VerticalMarqueeView color(int color){
        this.color = color;
        return this;
    }

    public VerticalMarqueeView textSize(int textSize){
        this.textSize = textSize;
        return this;
    }

    public VerticalMarqueeView datas(String[] datas){
        this.datas = datas;
        return this;
    }

    public void commit(){
        if(this.datas == null || datas.length == 0){
            Log.e("VerticalMarqueeView", "the datas's length is illegal");
            throw new IllegalStateException("may be not invoke the method named datas(String[])");
        }
        paint.setColor(color);
        paint.setTextSize(textSize);
    }

最後一定要調用commit方法進行提交,通過代碼可以看出來這裡除了有排空措施,還有最重要的一步:設置字體的大小。



然後我抽象出一個文字塊的bean類:



    public class TextBlock {
        private int width;
        private int height;
        private String text;
        private int drawX;
        private int drawY;
        private Paint paint;
        private int position;

        public TextBlock(int width, int height, Paint paint){
            this.width = width;
            this.height = height;
            this.paint = paint;
        }

        public void reset(int centerY){
            reset(text, centerX, centerY, position);
        }

        public void reset(String text, int centerY){
            reset(text, centerX, centerY, position);
        }

        public void reset(String text, int centerY, int position){
            reset(text, centerX, centerY, position);
        }

        public void reset(String text, int centerX, int centerY, int position){
            this.text = text;
            this.position = position;
            int measureWidth = (int)paint.measureText(text);
            drawX = (width - measureWidth) / 2;
            FontMetrics metrics =  paint.getFontMetrics();
            drawY = (int)(centerY + (metrics.bottom - metrics.top) / 2 - metrics.bottom);
        }

        public int getPosition(){
            return position;
        }

        public void draw(Canvas canvas){
            canvas.drawText(text, drawX, drawY, paint);
        }
    }

這個bean類,最重要的方法就是幾個重載的reset方法,通過改變centerY的值,來動態得改變繪制文字的起點實現居中繪制。關於文字的居中繪制請參考百度【android canvas 居中繪制文本】。



然後是重寫onMeasure方法



    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec){
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        if(this.datas == null || this.datas.length == 0){
            Log.e("VerticalMarqueeView", "the datas's length is illegal");
            return;
        }
        width = MeasureSpec.getSize(widthMeasureSpec) - getPaddingLeft() - getPaddingRight();
        height = MeasureSpec.getSize(heightMeasureSpec) - getPaddingTop() - getPaddingBottom();
        centerX = width / 2;
        centerY = height / 2;
        blocks.clear();
        //添加顯示區域的文字塊
        TextBlock block1 = new TextBlock(width, height, paint);
        block1.reset(datas[0], centerX, centerY, 0);
        blocks.add(block1);
        if(datas.length > 1){
            TextBlock block2 = new TextBlock(width, height, paint);
            block2.reset(datas[1], centerX, centerY + height, 1);
            blocks.add(block2);
        }
    }

在這個方法中,首先進行非空判斷以免出現致命邏輯錯誤。然後得到整個控件的寬高和重心坐標。然後實例化兩個文字塊TextBlock,第一個文字塊通過reset設置中點y坐標為整個控件的中點y坐標,第二個文字塊通過reset設置中點y坐標為centerY+height,意思就是置於下一個文字塊的不可見區域內。



然後是onDraw方法,這個方法非常簡單,已經將業務邏輯轉交給TextBlock的draw方法了。



    @Override
    protected void onDraw(Canvas canvas){
        for(int i = 0; i < blocks.size(); i++){
            blocks.get(i).draw(canvas);
        }
    }

最關鍵的就是滾動效果的實現了,首先我們給出兩個方法,開始滾動和結束滾動。





    public void startScroll(){
        isStopScroll = false;
        if(datas == null || datas.length == 0 || datas.length == 1){
            Log.e("VerticalMarqueeView", "the datas's length is illegal");
            return;
        }
        if(!isStopScroll){
            handler.postDelayed(new Runnable(){

                @Override
                public void run(){
                    scroll();
                    if(!isStopScroll){
                        handler.postDelayed(this, DURATION_SCROLL);
                    }
                }
            }, DURATION_SCROLL);
        }
    }

    public void stopScroll(){
        this.isStopScroll = true;
    }



原理很簡單,首先給出一個boolean標志isStopScroll。然後用Handler的postDelayed方法進行循環延遲得調用scroll方法進行滾動。接下來給出全文最重要的方法,scroll方法。



private void scroll(){
        ValueAnimator animator = ValueAnimator.ofPropertyValuesHolder(PropertyValuesHolder.ofInt("scrollY", centerY, centerY - height));
        animator.setDuration(DURATION_ANIMATOR);
        animator.addUpdateListener(new AnimatorUpdateListener(){

            @Override
            public void onAnimationUpdate(ValueAnimator animation){
                int scrollY = (int)animation.getAnimatedValue("scrollY");
                blocks.get(0).reset(scrollY);
                blocks.get(1).reset(scrollY + height);
                invalidate();
            }
        });
        animator.addListener(new AnimatorListener(){

            @Override
            public void onAnimationStart(Animator animation){
            }

            @Override
            public void onAnimationRepeat(Animator animation){
            }

            @Override
            public void onAnimationEnd(Animator animation){
                //移除第一塊
                int position = blocks.get(1).getPosition();
                TextBlock textBlock = blocks.remove(0);
                //最後一個
                if(position == datas.length - 1){
                    position = 0;
                }else{
                    position ++;
                }
                textBlock.reset(datas[position], centerY + height, position);
                blocks.add(textBlock);
                invalidate();
            }

            @Override
            public void onAnimationCancel(Animator animation){
            }
        });
        animator.start();
    }

首先采用ValueAnimator類進行屬性動畫,開始值為控件的中點y坐標,結束值為centerY-height,意味著要從下往上移動一個文字塊的距離。然後在動畫更新回調方法中,進行對文字塊的reset方法。當動畫結束後,得到第二個文字塊的position值,然後移除第一個文字塊,重新reset這個文字塊的索引值,再加入到List的容器中。如此循壞。



最後給一個get方法返回position吧。



    public int getCurrentPosition(){
        if(datas == null || datas.length == 0){
            return -1;
        }
        if(datas.length == 1 && blocks.size() == 1){
            return 0;
        }
        return blocks.get(0).getPosition();
    }

上述就將這個自定義控件的所有代碼都呈現出來了,考慮到比較零散,這裡講所有代碼都打印出來:





/**
  * @FileName: VerticalMarqueeView.java
  * @Author
  * @Description:
  * @Date 2016年7月13日 上午9:32:27
  * @CopyRight CNP Corporation
  */
package cc.wxf.component;

import android.animation.Animator;
import android.animation.Animator.AnimatorListener;
import android.animation.PropertyValuesHolder;
import android.animation.ValueAnimator;
import android.animation.ValueAnimator.AnimatorUpdateListener;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Paint.FontMetrics;
import android.os.Handler;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;

import java.util.ArrayList;
import java.util.List;

public class VerticalMarqueeView extends View{

    public static final int DURATION_SCROLL = 3000;
    public static final int DURATION_ANIMATOR = 1000;
    private int color = Color.BLACK;
    private int textSize = 30;
    private String[] datas = null;

    private int width;
    private int height;
    private int centerX;
    private int centerY;

    private List blocks = new ArrayList(2);
    private Paint paint = new Paint(Paint.ANTI_ALIAS_FLAG);
    private Handler handler = new Handler();
    private boolean isStopScroll = false;

    public VerticalMarqueeView(Context context, AttributeSet attrs, int defStyleAttr){
        super(context, attrs, defStyleAttr);
    }

    public VerticalMarqueeView(Context context, AttributeSet attrs){
        super(context, attrs);
    }

    public VerticalMarqueeView(Context context){
        super(context);
    }

    public VerticalMarqueeView color(int color){
        this.color = color;
        return this;
    }

    public VerticalMarqueeView textSize(int textSize){
        this.textSize = textSize;
        return this;
    }

    public VerticalMarqueeView datas(String[] datas){
        this.datas = datas;
        return this;
    }

    public void commit(){
        if(this.datas == null || datas.length == 0){
            Log.e("VerticalMarqueeView", "the datas's length is illegal");
            throw new IllegalStateException("may be not invoke the method named datas(String[])");
        }
        paint.setColor(color);
        paint.setTextSize(textSize);
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec){
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        if(this.datas == null || this.datas.length == 0){
            Log.e("VerticalMarqueeView", "the datas's length is illegal");
            return;
        }
        width = MeasureSpec.getSize(widthMeasureSpec) - getPaddingLeft() - getPaddingRight();
        height = MeasureSpec.getSize(heightMeasureSpec) - getPaddingTop() - getPaddingBottom();
        centerX = width / 2;
        centerY = height / 2;
        blocks.clear();
        //添加顯示區域的文字塊
        TextBlock block1 = new TextBlock(width, height, paint);
        block1.reset(datas[0], centerX, centerY, 0);
        blocks.add(block1);
        if(datas.length > 1){
            TextBlock block2 = new TextBlock(width, height, paint);
            block2.reset(datas[1], centerX, centerY + height, 1);
            blocks.add(block2);
        }
    }

    @Override
    protected void onDraw(Canvas canvas){
        for(int i = 0; i < blocks.size(); i++){
            blocks.get(i).draw(canvas);
        }
    }

    public void startScroll(){
        isStopScroll = false;
        if(datas == null || datas.length == 0 || datas.length == 1){
            Log.e("VerticalMarqueeView", "the datas's length is illegal");
            return;
        }
        if(!isStopScroll){
            handler.postDelayed(new Runnable(){

                @Override
                public void run(){
                    scroll();
                    if(!isStopScroll){
                        handler.postDelayed(this, DURATION_SCROLL);
                    }
                }
            }, DURATION_SCROLL);
        }
    }

    public void stopScroll(){
        this.isStopScroll = true;
    }

    private void scroll(){
        ValueAnimator animator = ValueAnimator.ofPropertyValuesHolder(PropertyValuesHolder.ofInt("scrollY", centerY, centerY - height));
        animator.setDuration(DURATION_ANIMATOR);
        animator.addUpdateListener(new AnimatorUpdateListener(){

            @Override
            public void onAnimationUpdate(ValueAnimator animation){
                int scrollY = (int)animation.getAnimatedValue("scrollY");
                blocks.get(0).reset(scrollY);
                blocks.get(1).reset(scrollY + height);
                invalidate();
            }
        });
        animator.addListener(new AnimatorListener(){

            @Override
            public void onAnimationStart(Animator animation){
            }

            @Override
            public void onAnimationRepeat(Animator animation){
            }

            @Override
            public void onAnimationEnd(Animator animation){
                //移除第一塊
                int position = blocks.get(1).getPosition();
                TextBlock textBlock = blocks.remove(0);
                //最後一個
                if(position == datas.length - 1){
                    position = 0;
                }else{
                    position ++;
                }
                textBlock.reset(datas[position], centerY + height, position);
                blocks.add(textBlock);
                invalidate();
            }

            @Override
            public void onAnimationCancel(Animator animation){
            }
        });
        animator.start();
    }

    public int getCurrentPosition(){
        if(datas == null || datas.length == 0){
            return -1;
        }
        if(datas.length == 1 && blocks.size() == 1){
            return 0;
        }
        return blocks.get(0).getPosition();
    }

    public class TextBlock {
        private int width;
        private int height;
        private String text;
        private int drawX;
        private int drawY;
        private Paint paint;
        private int position;

        public TextBlock(int width, int height, Paint paint){
            this.width = width;
            this.height = height;
            this.paint = paint;
        }

        public void reset(int centerY){
            reset(text, centerX, centerY, position);
        }

        public void reset(String text, int centerY){
            reset(text, centerX, centerY, position);
        }

        public void reset(String text, int centerY, int position){
            reset(text, centerX, centerY, position);
        }

        public void reset(String text, int centerX, int centerY, int position){
            this.text = text;
            this.position = position;
            int measureWidth = (int)paint.measureText(text);
            drawX = (width - measureWidth) / 2;
            FontMetrics metrics =  paint.getFontMetrics();
            drawY = (int)(centerY + (metrics.bottom - metrics.top) / 2 - metrics.bottom);
        }

        public int getPosition(){
            return position;
        }

        public void draw(Canvas canvas){
            canvas.drawText(text, drawX, drawY, paint);
        }
    }

}

最後給出使用的方法,很簡單。





package cc.wxf.androiddemo;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.view.View;
import android.widget.Toast;

import cc.wxf.component.VerticalMarqueeView;

public class MainActivity extends Activity {

    private VerticalMarqueeView vmView;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        vmView = (VerticalMarqueeView)findViewById(R.id.vmView);
        String[] datas = new String[]{
                "南海又開始動蕩了","菲律賓到處都在肇事","這次為了一張審判廢紙,菲律賓投入了多少成本呢","測試數據4","測試數據5為了長度不一樣","就把這條當做測試數據吧"
        };
        vmView.color(getResources().getColor(android.R.color.black))
                .textSize(sp2px(this, 15))
                .datas(datas).commit();
        vmView.startScroll();
        vmView.setOnClickListener(new View.OnClickListener(){

            @Override
            public void onClick(View v){
                Toast.makeText(MainActivity.this, "當前的索引為:" + vmView.getCurrentPosition(), Toast.LENGTH_SHORT).show();
            }
        });
    }

    private int sp2px(Context context, int sp){
        float density = context.getResources().getDisplayMetrics().scaledDensity;
        return (int) (sp * density + 0.5f);
    }

    @Override
    protected void onDestroy() {
        super.onDestroy();
        //必須要調用,否則內存中會一直無限循環
        vmView.stopScroll();
    }
}

demo就不提供了,自定義View就只有上面一個文件。



另外,尊重原創哈。轉載需要說明哦。

  1. 上一頁:
  2. 下一頁:
熱門文章
閱讀排行版
Copyright © Android教程網 All Rights Reserved
