系統提供的Interpolator

LinearInterpolator 線性插值器

public class LinearInterpolator extends BaseInterpolator implements NativeInterpolatorFactory {

    public LinearInterpolator() {
    }

    public LinearInterpolator(Context context, AttributeSet attrs) {
    }

    public float getInterpolation(float input) {
        return input;
    }

    /** @hide */
    @Override
    public long createNativeInterpolator() {
        return NativeInterpolatorFactoryHelper.createLinearInterpolator();
    }
}

AccelerateInterpolator 加速插值器

源代碼：

public class AccelerateDecelerateInterpolator extends BaseInterpolator
        implements NativeInterpolatorFactory {
    public AccelerateDecelerateInterpolator() {
    }

    @SuppressWarnings({UnusedDeclaration})
    public AccelerateDecelerateInterpolator(Context context, AttributeSet attrs) {
    }

    public float getInterpolation(float input) { //這裡定義的函數
        return (float)(Math.cos((input + 1) * Math.PI) / 2.0f) + 0.5f;
    }

    /** @hide */
    @Override
    public long createNativeInterpolator() {
        return NativeInterpolatorFactoryHelper.createAccelerateDecelerateInterpolator();
    }
}

減速DecelerateInterpolator

源碼：<喎?/kf/ware/vc/" target="_blank" class="keylink">vcD4NCjxwcmUgY2xhc3M9"brush:java;"> /** * An interpolator where the rate of change starts out quickly and * and then decelerates. * */ @HasNativeInterpolator public class DecelerateInterpolator extends BaseInterpolator implements NativeInterpolatorFactory { public DecelerateInterpolator() { } /** * Constructor * * @param factor Degree to which the animation should be eased. Setting factor to 1.0f produces * an upside-down y=x^2 parabola. Increasing factor above 1.0f makes exaggerates the * ease-out effect (i.e., it starts even faster and ends evens slower) */ public DecelerateInterpolator(float factor) { mFactor = factor; } public DecelerateInterpolator(Context context, AttributeSet attrs) { this(context.getResources(), context.getTheme(), attrs); } /** @hide */ public DecelerateInterpolator(Resources res, Theme theme, AttributeSet attrs) { TypedArray a; if (theme != null) { a = theme.obtainStyledAttributes(attrs, R.styleable.DecelerateInterpolator, 0, 0); } else { a = res.obtainAttributes(attrs, R.styleable.DecelerateInterpolator); } mFactor = a.getFloat(R.styleable.DecelerateInterpolator_factor, 1.0f); setChangingConfiguration(a.getChangingConfigurations()); a.recycle(); } public float getInterpolation(float input) { float result; if (mFactor == 1.0f) { result = (float)(1.0f - (1.0f - input) * (1.0f - input)); } else { result = (float)(1.0f - Math.pow((1.0f - input), 2 * mFactor)); } return result; } private float mFactor = 1.0f; /** @hide */ @Override public long createNativeInterpolator() { return NativeInterpolatorFactoryHelper.createDecelerateInterpolator(mFactor); } }

AccelerateDecelerateInterpolator 加速減速插值器

源碼：

@HasNativeInterpolator
public class AccelerateDecelerateInterpolator extends BaseInterpolator
        implements NativeInterpolatorFactory {
    public AccelerateDecelerateInterpolator() {
    }

    @SuppressWarnings({UnusedDeclaration})
    public AccelerateDecelerateInterpolator(Context context, AttributeSet attrs) {
    }

    public float getInterpolation(float input) { //這裡定義函數
        return (float)(Math.cos((input + 1) * Math.PI) / 2.0f) + 0.5f;
    }

    /** @hide */
    @Override
    public long createNativeInterpolator() {
        return NativeInterpolatorFactoryHelper.createAccelerateDecelerateInterpolator();
    }
}

BounceInterpolator 彈跳插值器

package android.view.animation;

import android.content.Context;
import android.util.AttributeSet;

import com.android.internal.view.animation.HasNativeInterpolator;
import com.android.internal.view.animation.NativeInterpolatorFactory;
import com.android.internal.view.animation.NativeInterpolatorFactoryHelper;

/**
 * An interpolator where the change bounces at the end.
 */
@HasNativeInterpolator
public class BounceInterpolator extends BaseInterpolator implements NativeInterpolatorFactory {
    public BounceInterpolator() {
    }

    @SuppressWarnings({UnusedDeclaration})
    public BounceInterpolator(Context context, AttributeSet attrs) {
    }

    private static float bounce(float t) {
        return t * t * 8.0f;
    }

    public float getInterpolation(float t) {
        // _b(t) = t * t * 8
        // bs(t) = _b(t) for t < 0.3535
        // bs(t) = _b(t - 0.54719) + 0.7 for t < 0.7408
        // bs(t) = _b(t - 0.8526) + 0.9 for t < 0.9644
        // bs(t) = _b(t - 1.0435) + 0.95 for t <= 1.0
        // b(t) = bs(t * 1.1226)
        t *= 1.1226f;
        if (t < 0.3535f) return bounce(t);
        else if (t < 0.7408f) return bounce(t - 0.54719f) + 0.7f;
        else if (t < 0.9644f) return bounce(t - 0.8526f) + 0.9f;
        else return bounce(t - 1.0435f) + 0.95f;
    }

    /** @hide */
    @Override
    public long createNativeInterpolator() {
        return NativeInterpolatorFactoryHelper.createBounceInterpolator();
    }
}

AnticipateInterpolator 回蕩秋千插值器

public class AnticipateInterpolator extends BaseInterpolator implements NativeInterpolatorFactory {
    private final float mTension;

    public AnticipateInterpolator() {
        mTension = 2.0f;
    }

    /**
     * @param tension Amount of anticipation. When tension equals 0.0f, there is
     *                no anticipation and the interpolator becomes a simple
     *                acceleration interpolator.
     */
    public AnticipateInterpolator(float tension) {
        mTension = tension;
    }

    public AnticipateInterpolator(Context context, AttributeSet attrs) {
        this(context.getResources(), context.getTheme(), attrs);
    }

    /** @hide */
    public AnticipateInterpolator(Resources res, Theme theme, AttributeSet attrs) {
        TypedArray a;
        if (theme != null) {
            a = theme.obtainStyledAttributes(attrs, R.styleable.AnticipateInterpolator, 0, 0);
        } else {
            a = res.obtainAttributes(attrs, R.styleable.AnticipateInterpolator);
        }

        mTension = a.getFloat(R.styleable.AnticipateInterpolator_tension, 2.0f);
        setChangingConfiguration(a.getChangingConfigurations());
        a.recycle();
    }

    public float getInterpolation(float t) {
        // a(t) = t * t * ((tension + 1) * t - tension)
        return t * t * ((mTension + 1) * t - mTension);
    }

    /** @hide */
    @Override
    public long createNativeInterpolator() {
        return NativeInterpolatorFactoryHelper.createAnticipateInterpolator(mTension);
    }
}

AnticipateOvershootInterpolator

/**
 * An interpolator where the change starts backward then flings forward and overshoots
 * the target value and finally goes back to the final value.
 */
@HasNativeInterpolator
public class AnticipateOvershootInterpolator extends BaseInterpolator
        implements NativeInterpolatorFactory {
    private final float mTension;

    public AnticipateOvershootInterpolator() {
        mTension = 2.0f * 1.5f;
    }

    /**
     * @param tension Amount of anticipation/overshoot. When tension equals 0.0f,
     *                there is no anticipation/overshoot and the interpolator becomes
     *                a simple acceleration/deceleration interpolator.
     */
    public AnticipateOvershootInterpolator(float tension) {
        mTension = tension * 1.5f;
    }

    /**
     * @param tension Amount of anticipation/overshoot. When tension equals 0.0f,
     *                there is no anticipation/overshoot and the interpolator becomes
     *                a simple acceleration/deceleration interpolator.
     * @param extraTension Amount by which to multiply the tension. For instance,
     *                     to get the same overshoot as an OvershootInterpolator with
     *                     a tension of 2.0f, you would use an extraTension of 1.5f.
     */
    public AnticipateOvershootInterpolator(float tension, float extraTension) {
        mTension = tension * extraTension;
    }

    public AnticipateOvershootInterpolator(Context context, AttributeSet attrs) {
        this(context.getResources(), context.getTheme(), attrs);
    }

    /** @hide */
    public AnticipateOvershootInterpolator(Resources res, Theme theme, AttributeSet attrs) {
        TypedArray a;
        if (theme != null) {
            a = theme.obtainStyledAttributes(attrs, AnticipateOvershootInterpolator, 0, 0);
        } else {
            a = res.obtainAttributes(attrs, AnticipateOvershootInterpolator);
        }

        mTension = a.getFloat(AnticipateOvershootInterpolator_tension, 2.0f) *
                a.getFloat(AnticipateOvershootInterpolator_extraTension, 1.5f);
        setChangingConfiguration(a.getChangingConfigurations());
        a.recycle();
    }

    private static float a(float t, float s) {
        return t * t * ((s + 1) * t - s);
    }

    private static float o(float t, float s) {
        return t * t * ((s + 1) * t + s);
    }

    public float getInterpolation(float t) {
        // a(t, s) = t * t * ((s + 1) * t - s)
        // o(t, s) = t * t * ((s + 1) * t + s)
        // f(t) = 0.5 * a(t * 2, tension * extraTension), when t < 0.5
        // f(t) = 0.5 * (o(t * 2 - 2, tension * extraTension) + 2), when t <= 1.0
        if (t < 0.5f) return 0.5f * a(t * 2.0f, mTension);
        else return 0.5f * (o(t * 2.0f - 2.0f, mTension) + 2.0f);
    }

    /** @hide */
    @Override
    public long createNativeInterpolator() {
        return NativeInterpolatorFactoryHelper.createAnticipateOvershootInterpolator(mTension);
    }
}

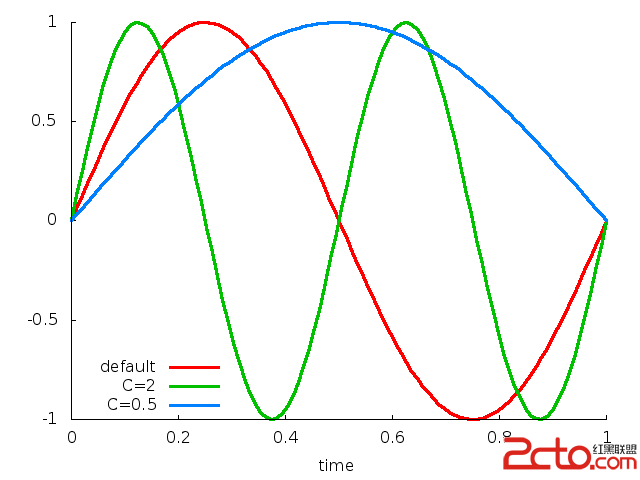

CycleInterpolator 正弦周期變化插值器

 @HasNativeInterpolator
public class CycleInterpolator extends BaseInterpolator implements NativeInterpolatorFactory {
    public CycleInterpolator(float cycles) {
        mCycles = cycles;
    }

    public CycleInterpolator(Context context, AttributeSet attrs) {
        this(context.getResources(), context.getTheme(), attrs);
    }

    /** @hide */
    public CycleInterpolator(Resources resources, Theme theme, AttributeSet attrs) {
        TypedArray a;
        if (theme != null) {
            a = theme.obtainStyledAttributes(attrs, R.styleable.CycleInterpolator, 0, 0);
        } else {
            a = resources.obtainAttributes(attrs, R.styleable.CycleInterpolator);
        }

        mCycles = a.getFloat(R.styleable.CycleInterpolator_cycles, 1.0f);
        setChangingConfiguration(a.getChangingConfigurations());
        a.recycle();
    }

    public float getInterpolation(float input) {
        return (float)(Math.sin(2 * mCycles * Math.PI * input));
    }

    private float mCycles;

    /** @hide */
    @Override
    public long createNativeInterpolator() {
        return NativeInterpolatorFactoryHelper.createCycleInterpolator(mCycles);
    }
}

OvershootInterpolator

/**
 * An interpolator where the change flings forward and overshoots the last value
 * then comes back.
 */
@HasNativeInterpolator
public class OvershootInterpolator extends BaseInterpolator implements NativeInterpolatorFactory {
    private final float mTension;

    public OvershootInterpolator() {
        mTension = 2.0f;
    }

    /**
     * @param tension Amount of overshoot. When tension equals 0.0f, there is
     *                no overshoot and the interpolator becomes a simple
     *                deceleration interpolator.
     */
    public OvershootInterpolator(float tension) {
        mTension = tension;
    }

    public OvershootInterpolator(Context context, AttributeSet attrs) {
        this(context.getResources(), context.getTheme(), attrs);
    }

    /** @hide */
    public OvershootInterpolator(Resources res, Theme theme, AttributeSet attrs) {
        TypedArray a;
        if (theme != null) {
            a = theme.obtainStyledAttributes(attrs, R.styleable.OvershootInterpolator, 0, 0);
        } else {
            a = res.obtainAttributes(attrs, R.styleable.OvershootInterpolator);
        }

        mTension = a.getFloat(R.styleable.OvershootInterpolator_tension, 2.0f);
        setChangingConfiguration(a.getChangingConfigurations());
        a.recycle();
    }

    public float getInterpolation(float t) {
        // _o(t) = t * t * ((tension + 1) * t + tension)
        // o(t) = _o(t - 1) + 1
        t -= 1.0f;
        return t * t * ((mTension + 1) * t + mTension) + 1.0f;
    }

    /** @hide */
    @Override
    public long createNativeInterpolator() {
        return NativeInterpolatorFactoryHelper.createOvershootInterpolator(mTension);
    }
}

自定義Interpolator

Interpolator源碼：

package android.view.animation;

import android.animation.TimeInterpolator;

/**
 * An interpolator defines the rate of change of an animation. This allows
 * the basic animation effects (alpha, scale, translate, rotate) to be
 * accelerated, decelerated, repeated, etc.
 */
public interface Interpolator extends TimeInterpolator {
    // A new interface, TimeInterpolator, was introduced for the new android.animation
    // package. This older Interpolator interface extends TimeInterpolator so that users of
    // the new Animator-based animations can use either the old Interpolator implementations or
    // new classes that implement TimeInterpolator directly.
}

我們來寫自己的類來實現該接口

import android.view.animation.Interpolator;
public class MyInterpolator implements Interpolator {
    private float mFactor;
    private int i;
    public MyInterpolator(int i){
        this.i = i;
    }
    @Override
    public float getInterpolation(float input) { //定義我們的函數，input: 0 ~ 1
        switch(i){
            case 1:mFactor = input;
                break;
            case 2:mFactor = input*input*input;
                break;
        }
        return mFactor;
    }
}

來個復雜的：

用desmos畫一個：

@Override
public float getInterpolation(float t) { //定義我們的函數，t: 0 ~ 1
    if(t<0.2094) return (float)(-34*(t-0.18)*(t-0.18)+1.08);
    else if(t <0.404) return (float)(5.9*(t-0.34)*(t-0.34)+0.95);
    else if(t < 0.6045) return (float)(-3*(t-0.53)*(t-0.53)+1.02);
    else if(t < 0.8064) return (float)((t-0.72)*(t-0.72)+0.99);
    else return (float)(-0.3*(t-0.915)*(t-0.915)+1.001);
    return mFactor;
}
